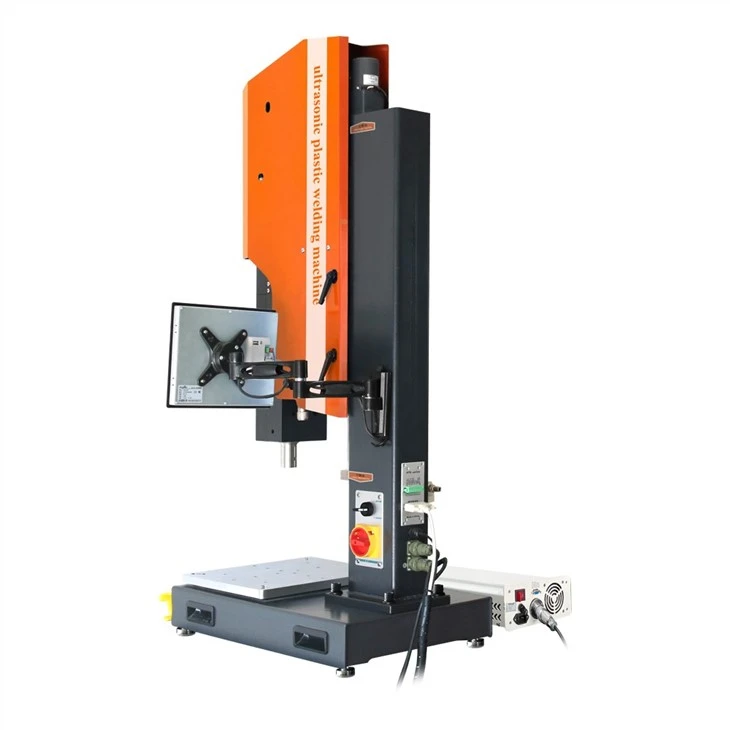

Ultrasonic Tshuab Vuam Tsheb Cua Lim

Lub zog ultrasonic yog xa mus rau qhov chaw vuam los ntawm kev sib txuas sab saud. Ob lub welded interfaces ua kom muaj kev sib txhuam ceev ceev thiab kub hauv zos nce.

Xa kev nug

Ces

1. Cov khoom piav qhia

Ultrasonic zog yog kis mus rau lub vuam cheeb tsam los ntawm lub Upper weldment, thiab ob welding interfaces tsim high-ceev kev sib txhuam kub thiab lub zos kub nce. Txawm li cas los xij, vim qhov tsis zoo thermal conductivity ntawm cov yas, nws tsis tuaj yeem dissipate tshav kub nyob rau hauv lub sij hawm thiab sib sau ua ke nyob rau hauv lub vuam cheeb tsam, uas ua rau lub melting sai sai ntawm ob qhov chaw ntawm yas. Nyob rau hauv tej lub siab, qhov chaw tiv tauj yuav fuse rau hauv ib qho. Thaum lub ultrasonic nthwv dej ntawm Ultrasonic Tshuab Vuam Tsheb Cua Lim nres, cia lub siab txuas ntxiv, ua kom lub siab ntev me ntsis, thiab cov yas yuav khov thiab ua kom zoo.

Raws li cov kev cai vuam, Ultrasonic Tshuab Vuam Tsheb Cua Lim tuaj yeem xaiv hom semi-automatic lossis tsis siv neeg, thiab vuam kub, lub sijhawm cua sov, lub sijhawm txias, cua sov qhov tob, vuam qhov tob, lub sijhawm hloov pauv thiab lwm yam tuaj yeem hloov kho.

Ultrasonic Tshuab Vuam Tsheb Cua Lim yog siv rau: tsheb cua lim, hluav taws xob ntsuas lub thawv vuam, lub ntsuas dej ntsuas lub thawv vuam, lub hwj chim adapter vuam, U disk vuam, xov tooj txais vuam, hluav taws xob yoov tshaj cum vuam, hluav taws xob txhuam hniav tuav vuam, thiab lwm yam.

2. Khoom parameter

Cov khoom	H80 series
Qauv No.	15K-3200W	20K-3000W	35K-1200W	15K-3200W-P	20K-3000W-P	35K-1200W-P
ua hauj lwm zaus	15 KHz	20 KHz	35 KHz	15 KHz	20 KHz	35 KHz
Lub zog ua haujlwm	3200W	3000W	1200W	3200W	3000W	1200W
Ua hauj lwm voltage / gas qhov chaw	220V ± 10 feem pua / 0.2-0.7Mpa
Vuam stroke	100MM	100MM	100MM	100MM	100MM	100MM

3. Khoom feature thiab daim ntawv thov

Me me, kev ua haujlwm yooj yim thiab ceev ceev;

Siv module integrated Circuit Court, muaj zog tso zis;
Built-in tag nrho tsis siv neeg tiv thaiv Circuit Court, muaj kev nyab xeeb siv, ruaj khov thiab txhim khu kev qha ua haujlwm;

Qhov chaw vuam yog ruaj, muaj zog, zoo nkauj thiab ib puag ncig zoo;

Raws li qhov loj ntawm qhov taw tes riveting ntawm cov khoom yuav tsum tau welded thiab vuam yuav tsum, sib txawv ultrasonic vuam horns yuav hloov, uas yog ceev thiab yooj yim.

4. FAQ

Vim li cas lub ultrasonic welder tawg?

Thaum lub sijhawm ua haujlwm ntawm ultrasonic vuam tshuab, cov khoom nto feem ntau muaj qhov tshwm sim ntawm pob txha ntawm qhov sib koom ua ke. Vim tias muaj ob hom kev lag luam ultrasonic ntawm ultrasonic vuam tshuab:

1. Thaum tshav kub kub tuaj yeem tiv tauj ncaj qha rau saum npoo ntawm cov khoom yas;

2. Kev vibration conduction. Thaum lub ultrasonic vibration ntawm ultrasonic vuam tshuab ua rau cov khoom yas, qhov saum npoo ntawm cov khoom yog ib qho yooj yim mus hlawv, thiab cov kab yas los yog qhov nrog nyias tuab heev kuj yooj yim rau tawg, uas yog ib tug prerequisite rau ultrasonic lag luam thiab inevitable. Ntawm qhov tod tes, vim tsis muaj lub zog ntawm ultrasonic tso zis, thaum lub zog sib txhuam lub zog hloov mus rau hauv lub zog hluav taws xob, nws yuav siv sij hawm ntev los ua kom lub zog hluav taws xob los ua kom lub zog tsis muaj zog. Txoj kev vuam no tsis yog lub zog hluav taws xob tam sim ntawd, tab sis yuav tsum tau khaws cov hluav taws xob los ntawm lub sijhawm vuam los ua kom lub melting point ntawm cov khoom yas ncav cuag cov nyhuv vuam. Qhov no yuav ua rau lub zog hluav taws xob nyob rau ntawm cov khoom nto ntev heev, thiab qhov kub thiab txias thiab siab yuav ua rau cov khoom scalded, cuam tshuam los yog tawg. Yog li ntawd, kev sib koom ua ke xws li cov zis hluav taws xob (ntau ntu), lub sijhawm vuam thiab lub zog siab yuav tsum raug txiav txim siab kom kov yeej qhov tsis ua haujlwm no.
