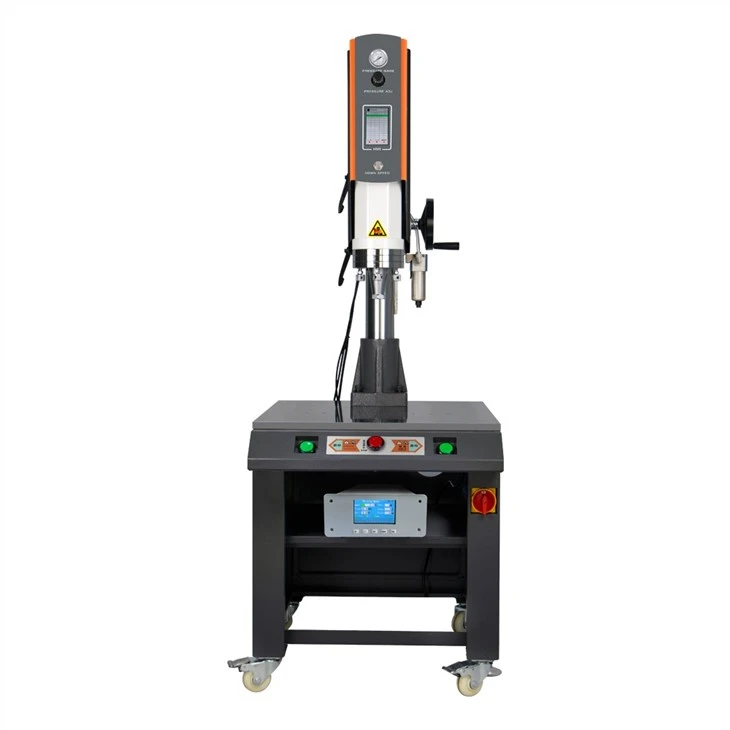

Ultrasonic Vuam Equipments
Ultrasonic transducer ntawm ultrasonic vuam equipments yog cov cuab yeej tseem ceeb uas hloov hluav taws xob hluav taws xob rau hauv lub zog siv hluav taws xob (ultrasonic), piezoelectric ceramic nti yog xaiv los ntawm cov neeg lag luam paub zoo, thiab tuaj yeem muab cov khoom muaj zog thiab ruaj khov.
Khoom taw qhia
Ultrasonic transducer ntawm ultrasonic vuam equipments yog cov khoom siv tseem ceeb uas hloov hluav taws xob rau hauv lub zog siv hluav taws xob (ultrasonic). Lub piezoelectric ceramic nti yog xaiv los ntawm cov neeg muag khoom paub zoo, thiab tuaj yeem muab cov khoom muaj zog thiab ruaj khov. Qhov zaus ntawm ultrasonic vuam equipments yog 20kHz. Peb tuaj yeem muab ultrasonic transducer, ultrasonic transducer nrog booster thiab sonotrode cais raws li koj qhov kev thov. Peb cov TCR ultrasonic generator tau txais kev tshaj IGBT Tag Nrho Choj Phase Ua haujlwm thev naus laus zis uas muaj cov yam ntxwv hauv kev soj ntsuam tsis siv neeg zaus thiab qhov tso zis tas li amplitude thiab lwm yam uas tuaj yeem ua tiav qhov tseeb resonant zaus thiab lub zog tso zis. Nws tuaj yeem kho nws tus kheej kom haum rau transducerand sonotrode thaum ua haujlwm.
Khoom parameter
Cov khoom | H40S series ntawm ultrasonic vuam equipments | ||||||||
ua hauj lwm zaus | 15 KHz | 15 KHz | 15 KHz | 20 KHz | 20 KHz | 28 KHz | 30 KHz | 35 KHz | 40 KHz |
Lub zog ua haujlwm | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 1200W | 800W |
Ua hauj lwm voltage / gas qhov chaw | 220V ± 10 feem pua / 0.2-0.7Mpa | ||||||||
Vuam stroke | 100MM | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib |
Lub cev loj mm | 750*900*1900 | 650*750*1880 | 390*630*1050 | 650*750*1880 | 390*630*1050 | ||||
Net nyhav | Tsawg dua lossis sib npaug li 260KG | Tsawg dua los yog sib npaug li 150KG | Tsawg dua lossis sib npaug li 85KG | Tsawg dua los yog sib npaug li 150KG | Tsawg dua lossis sib npaug li 85KG | ||||
Kev ua haujlwm interface | 4.3 nti kov npo | ||||||||
Ultrasonic vuam equipments feature thiab daim ntawv thov
1. High quality piezoelectric ceramic transducer nrog siab thiab ruaj khov tso zis zog
2. Lub cev valve yog tsim los rau coaxial ncaj qha siab, tsis txhob rov qab khoov, ntsuas qhov siab, thiab txhim kho qhov vuam raug.
3. Cov txheej txheem vuam digital teeb tsa yog ncaj qha thiab raug
4. Ceev, yooj yim hloov ntawm qib tuag
5. Peb tus lej hloov pauv, 0 01-9.99s lub sijhawm tswj xyuas meej
6. Cov khoom tseem ceeb lossis fittings yog siv raws li topbrands
7. Qhov zoo tshaj plaws Circuit Court los yog transducing system, siab zog tawm, tshwj xeeb tshaj yog haum rau vuam ntawm ABS, PP, PS, nylon ntaub ntawv
FAQ
Q: Dab tsi ntawm cov ntaub ntawv yas tuaj yeem welded los ntawm ultrasonic?
Cov ntaub ntawv thermoplastic xws li: polypropylene (PP); polystyrene (PS); acrylonitrile butadiene styrene (ABS); polycarbonate (PC); polyethylene terephthalate (PET); Acrylic (PMMA); Nylon (PA);
Cov khaub ncaws ua los ntawm cov ntaub ntawv polyester: Jackets, khaub ncaws tiv thaiv hnub ci (X20); LL & LD; PS (H40); PP, PLA xov (2900sp handheld chaw vuam tshuab); ABS; PET; nylon lub xub pwg pluaj (H40); H40); Acrylic; PC, laptop roj teeb (15khz), boomerang LLDPE
Q: Cov khoom dab tsi tsis tuaj yeem ua ultrasonically welded?
PVC, TPU, PU tawv, hnab roj teeb; metaltin hlau, PE drip daim kab xev, HDPE yas (kub phaj tshuab), PU tawv, nruj XPS ua npuas ncauj, insulating ua npuas ncauj, kho mob lub hnab (siab zaus)
Q: Puas yog lub hnab lim (sab hauv 5 txheej ntawm cov ntaub nplaum, 300gsm non-woven npuag ntawm ob sab) tuaj yeem welded thiab txiav ua ke?
Yog lawm, nws nyob ntawm qhov loj ntawm lub hnab lim, 100 * 100mm 2mm tuab, H60 15k4200W pom zoo
Q: Puas yog ABS ntxiv rau PC plhaub ntawm walkie-talkie tuaj yeem welded?
Yog, pom zoo H80 20khz 2000w
Q: Lub hnab ntim ntshav loj: 350x180x150mm, ua los ntawm PVC, puas yog ultrasonically kaw?
Ntau zaus, peb ultrasound ua tsis tau.
Q; PVC hoses puas tuaj yeem welded los ntawm ultrasonic?
Tsis yog, peb yuav tsum siv cov zaus
