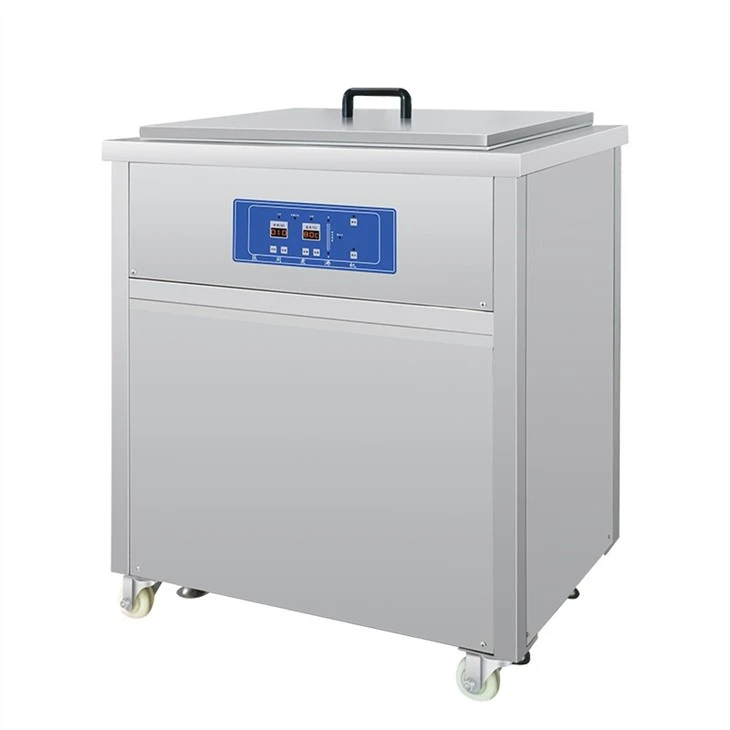

Muaj Ultrasonic Baths
Muaj Ultrasonic Baths yog ib hom khoom siv tshuab, uas siv lub hauv paus ntsiab lus ntawm ultrasonic tu rau tshuab tu.
Ultrasonic tu belongs rau lub cev quab yuam tu, uas yog ntsuab tu. Yog hais tias tsim nyog tus neeg saib xyuas yog ntxiv rau cov tshuaj ntxuav, nws belongs rau kev sib xyaw ua ke, uas muaj cov nyhuv tu kom pom tseeb. Ultrasonic tu yog hom kev siv hluav taws xob ntau tshaj plaws. Ultrasonic tu yog ze ze rau txoj kev loj hlob ntawm cov cuab yeej siv niaj hnub thiab cov cuab yeej tsim khoom siab heev. Ultrasonic tu yog ib txoj hauv kev zoo hauv ntau yam tshuaj, lub cev thiab kev tu txhua yam. Muaj Ultrasonic Baths yog dav siv nyob rau hauv txhua yam, kho qhov muag, hluav taws xob, lub teeb kev lag luam, textile, tshuaj, aerospace, shipbuilding, atomic zog, kev kho mob thiab kws industries.
|
Muaj Ultrasonic Baths Specification |
||||||
|
Qauv |
Muaj peev xwm |
Ultrasonic |
Ultrasonic |
Cua sov |
Transducers |
Sab hauv tank dimension (MM) |
|
JYD-1012SG |
45 |
25/28/40 |
600 |
1500 |
12 |
500*300*300 |
|
JYD-1018SG |
61 |
25/28/40 |
900 |
2000 |
18 |
500*350*350 |
|
JYD-1024SG |
88 |
25/28/40 |
1200 |
3000 |
24 |
550*400*400 |
|
JYD-1030SG |
108 |
25/28/40 |
1500 |
3000 |
30 |
600*450*400 |
|
JYD-1036SG |
147 |
25/28/40 |
1800 |
6000 |
36 |
650*500*450 |
|
JYD-1042SG |
163 |
25/28/40 |
2000 |
6000 |
42 |
650*500*500 |
|
JYD-1048SG |
175 |
25/28/40 |
2400 |
6000 |
48 |
700*500*500 |
|
JYD-1060SG |
240 |
25/28/40 |
3000 |
9000 |
60 |
800*600*500 |
|
JYD-1072SG |
300 |
25/28/40 |
3600 |
9000 |
72 |
1000*600*500 |
|
JYD-1096SG |
468 |
25/28/40 |
4800 |
9000 |
96 |
1750*700*500 |
|
JYD-1108SG |
480 |
25/28/40 |
5400 |
9000 |
108 |
1200*800*500 |
FAQ:
Kev ceev faj rau kev saib xyuas thiab kev siv ntawm Industrial Ultrasonic Baths:
1. Yog hais tias muaj tej yam txawv teb chaws poob rau hauv qhov zawj hauv qab, nws yuav tsum tau muab tshem tawm tam sim ntawd;
2. Thaum hloov los yog tshem tawm cov kua dej, nws yuav tsum tau nqa tawm thaum cov kua ntxuav hauv lub tank yog qhov kub thiab txias, thiab nws yuav tsum tau muab tua thiab tshem tawm cov hlua hluav taws xob;
3. Ntxuav thiab tshem tawm cov av hauv lub tank tu tsis tu ncua;
4. Lub sijhawm ua haujlwm ntawm txhua qhov pib yuav tsum tsis txhob ntev dhau. Nws raug nquahu kom kaw rau ob peb feeb rau cov cua sov dissipation tom qab li 8 teev ntawm kev pib ua haujlwm kom zoo dua lub tshuab;
5. Thaum lub sijhawm ua haujlwm ib txwm siv ntawm lub tshuab ntxhua khaub ncaws ultrasonic, lub suab tsis sib xws ntawm lub resonance ntawm ultrasonic yoj thiab lub tank lub cev yuav tsum tau hnov. Qhov saum npoo ntawm cov kua ntxuav yog tsis muaj turbulence, tsuas yog cov tshuaj tsuag dej los ntawm lub qhov tawg. Yog hais tias muaj kev sib cuam tshuam oscillation, thov ntxiv qee cov kua ntxuav los yog txo qee cov dej ntxuav, thiab tshem tawm cov oscillation yog qhov zoo rau kev ntxuav cov khoom;
6. Nyob rau ntawm qhov chaw ntawm kev ua kom huv si ntawm cov khoom tu, sim tsis txhob ua kom sov thiab ua haujlwm tsis tu ncua, vim tias cua sov thiab lub sij hawm ntev ultrasound nce qhov kub thiab txias hauv lub thawv, uas yog ib qho yooj yim rau kev laus ntawm cov khoom siv hluav taws xob hauv lub cev. lub thawv;
7. Tsis txhob siv cov tshuaj tua hluav taws kub;
8. Tsis txhob qhib lub rhaub lossis ultrasonic thaum tsis muaj tshuaj ntxuav hauv lub tank tu;
9. Tiv thaiv kom tsis txhob muaj cov dej ntxuav thiab dej tsis txhob txaws rau hauv rooj plaub thiab lub vibrator.
Yog xav paub ntxiv txog Industrial Ultrasonic Baths, thov koj xav tiv tauj peb!
