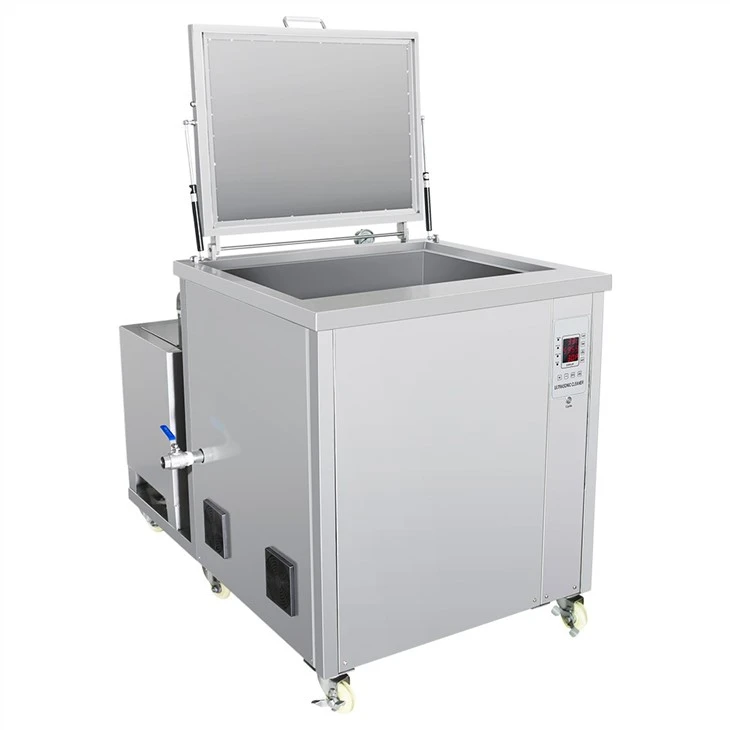

Roj Tshem Tawm Ultrasonic Ntxuav Tshuab
Tshem tawm cov roj thiab stains ntawm qhov chaw ntawm lub workpieces yog ib qho tseem ceeb hauv kev tsim cov txheej txheem ntawm cov khoom ua haujlwm. Nrog rau txoj kev loj hlob ntawm kev lag luam kev lag luam, ntau thiab ntau kev lag luam yuav siv ultrasonic tu tshuab. Lub ultrasonic tu ua los ntawm jiayuanda tshuab muaj kev ua haujlwm ...
Tshem tawm cov roj thiab stains ntawm qhov chaw ntawm lub workpieces yog ib qho tseem ceeb hauv kev tsim cov txheej txheem ntawm cov khoom ua haujlwm. Nrog rau txoj kev loj hlob ntawm kev lag luam kev lag luam, ntau thiab ntau kev lag luam yuav siv roj tshem tawm ultrasonic tu tshuab. Kev tu ultrasonic ua los ntawm jiayuanda thev naus laus zis muaj kev ua haujlwm thiab cov txiaj ntsig ntawm kev tshem tawm roj. Lub sij hawm ntxuav yog luv thiab cov efficiency siab. Koj tuaj yeem kho qhov loj ntawm lub tank sab hauv ultrasonic thiab lub zog raws li qhov loj ntawm koj cov khoom ua haujlwm uas twb muaj lawm
Nta:
1.Digital tswj lub sijhawm (9hours 59minutes), kub (0-100 degree), ultrasonic zog (0-100 feem pua adjustable)
2. LCD zaub, yooj yim los soj ntsuam lub xeev ua haujlwm raug thiab tswj xyuas
3. Ib qho tseem ceeb los pib degassing, uas ua kom muaj kev tu zoo dua
4. Kev tiv thaiv overload, tiv thaiv dej tsawg kawg nkaus
5. CE / FCC / ROHS muaj ntawv pov thawj ib xyoos lav.
6. Ntau qhov ntev ntawm qhov zawj sab hauv tuaj yeem hloov kho, uas feem ntau yog siv rau kev tu cov roj stain, plua plav, hlau filings thiab impurities ntawm lub tsheb pabcuam chaw nres tsheb, tho txawv thiab sib tsoo chaw, tsis siv neeg dialing thawv thiab ntau yam hlau;
7. Cov roj tshem tawm ultrasonic tu tshuab puab zawj yog welded nrog 2 hli SUS304 stainless hlau, nrog corrosion kuj ntau dua thiab kev ua haujlwm ruaj khov;
Specification ntawm Roj Tshem Tawm Ultrasonic Tu Tshuab | ||||||
Qauv | Muaj peev xwm(liter) | UltrasonicNtau zaus(KHz) | UltrasonicLub zog (W) | Cua sovLub zog (W) | TransducersQty (PCS) | Sab hauv tank dQhov siab (MM) |
JYD-1012SG | 45 | 25/28/40 | 600 | 1500 | 12 | 500*300*300 |
JYD-1018SG | 61 | 25/28/40 | 900 | 2000 | 18 | 500*350*350 |
JYD-1024SG | 88 | 25/28/40 | 1200 | 3000 | 24 | 550*400*400 |
JYD-1030SG | 108 | 25/28/40 | 1500 | 3000 | 30 | 600*450*400 |
JYD-1036SG | 147 | 25/28/40 | 1800 | 6000 | 36 | 650*500*450 |
JYD-1042SG | 163 | 25/28/40 | 2000 | 6000 | 42 | 650*500*500 |
JYD-1048SG | 175 | 25/28/40 | 2400 | 6000 | 48 | 700*500*500 |
JYD-1060SG | 240 | 25/28/40 | 3000 | 9000 | 60 | 800*600*500 |
JYD-1072SG | 300 | 25/28/40 | 3600 | 9000 | 72 | 1000*600*500 |
JYD-1096SG | 468 | 25/28/40 | 4800 | 9000 | 96 | 1750*700*500 |
JYD-1108SG | 480 | 25/28/40 | 5400 | 9000 | 108 | 1200*800*500 |
Lub hauv paus ntsiab lus ntawm cov roj tshem tawm ultrasonic tu tshuab: nws yog tsuas yog los hloov lub suab lub zog ntawm lub zog ultrasonic zaus qhov chaw mus rau hauv lub tshuab kev co los ntawm lub transducer, thiab radiate lub ultrasonic yoj mus rau lub ntxuav kua hauv lub tank los ntawm lub tank ntxuav, thiaj li ua rau cov roj, ciab, chips, slag, kho, plua plav thiab lwm yam stains poob tawm ntawm lub workpiece. Nws tuaj yeem ntxuav tau 360 degrees yam tsis muaj lub kaum sab xis tuag, tsis muaj kev puas tsuaj rau cov khoom, thiab tuaj yeem ntxuav ntawm qhov loj. Nws muaj cov yam ntxwv ntawm kev sib deev, dav adaptability thiab tsis muaj kev puas tsuaj rau cov khoom. Nws yog cov khoom siv tu rau cov lag luam niaj hnub.
Yog xav paub ntxiv ntawm Roj Tshem Tawm Ultrasonic Tu Tshuab, thov koj xav tiv tauj peb!
