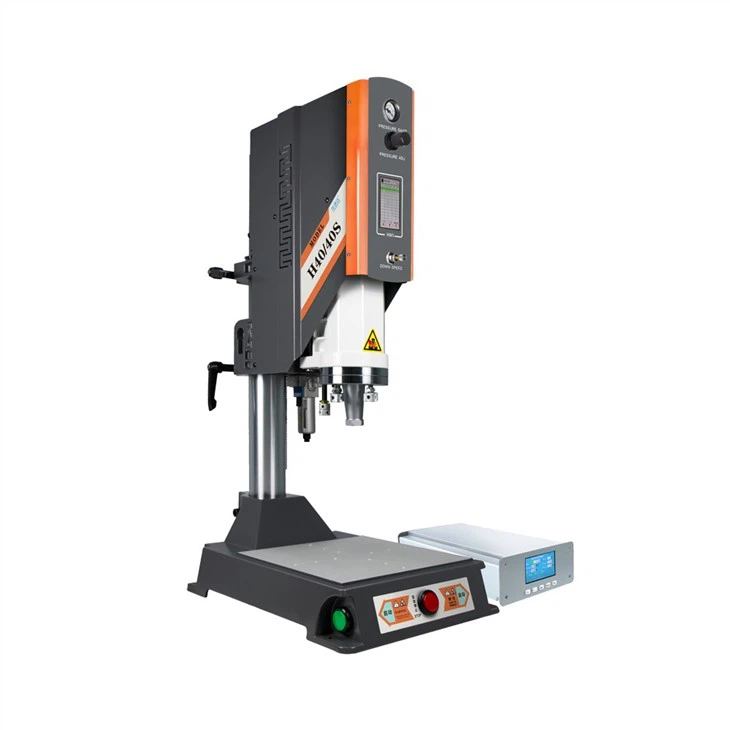

Tsis Siv Neeg Ultrasonic Vuam Tshuab
● Dovetail lub ntsiab kem tsis muaj deflection thaum mob stroke tsiv.
● Welding, piling, anti ntog thiab inserting hlau qhov chaw.
Khoom taw qhia
● Dovetail lub ntsiab kem tsis muaj deflection thaum lub stroke txav.
● Welding, piling, anti ntog thiab inserting hlau qhov chaw.
● Plaub screws yog ntsia rau kab rov tav ntawm cov khoom siv, uas tuaj yeem kho cov pwm yooj yim.
● thaum tam sim no overloaded, lub Circuit Court qhib hom kev tiv thaiv tsis siv neeg, lub kaw lus tsis siv neeg thiab kev xa khoom sai.
● Nws yog dav siv hauv kev lag luam txawv teb chaws.
● Cov ncej yog khoov thiab welded, seamless steel yeeb nkab kem yog saws, thiab kem puag yog ultra-siab.
● Lub tshuab ultrasonic yaj moulding tshuab txais cov cuab yeej luffing ntawm Nyiv Imperial steel, uas yog ruaj thiab ruaj.
● Lub taub hau vuam ntawm lub tshuab ultrasonic yaj tuaj yeem hloov kho kab rov tav, thiab cov pwm tuaj yeem kho tau yooj yim.
● Cov txheej txheem tag nrho yog sib sau ua ke nrog cov khoom siv zoo.
● Ib kem hluav taws xob nqa tshuab lub cev, yooj yim rau kev khiav lag luam.
● Lub tshuab tsis tshua muaj hlau ultrasonic yas melting tau tsim, uas yog kev lag luam hauv vuam thiab fusion thiab tuaj yeem vibrate ntim. Nws tuaj yeem muab tso rau kab rov tav los ua haujlwm tshwj xeeb. Nws kuj muaj kev tiv thaiv surge thiab lwm yam haujlwm. Nws yog heev haum rau siv nyob rau hauv tsis siv neeg ntau lawm layout thiab muaj ntau lawm zoo.
● Kev ua haujlwm yooj yim.
Khoom Parameter
Cov khoom | H40 series | ||||||||
ua hauj lwm zaus | 15 KHz | 15 KHz | 15 KHz | 20 KHz | 20 KHz | 28 KHz | 30 KHz | 35 KHz | 40 KHz |
Lub zog ua haujlwm | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 1200W | 800W |
Ua hauj lwm voltage / gas qhov chaw | 220V ± 10 feem pua / 0.2-0.7Mpa | ||||||||
Vuam stroke | 100MM | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib |
Dimensions mm | 750*900*1900 | 650*750*1880 | 390*630*1050 | 650*750*1880 | 390*630*1050 | ||||
Net nyhav | Tsawg dua lossis sib npaug li 260KG | Tsawg dua los yog sib npaug li 150KG | Tsawg dua lossis sib npaug li 85KG | Tsawg dua los yog sib npaug li 150KG | Tsawg dua lossis sib npaug li 85KG | ||||
Kev ua haujlwm interface | 4.3 nti kov npo | ||||||||
Lub ntsiab nta:
Lub transducer converts high-frequency hluav taws xob zog mus rau high-frequency mechanical vibrations. Thiab nws muaj ob peb piezoelectric ceramic discs sandwiched nyob rau hauv siab ntawm ob hlau thaiv. Nruab nrab ntawm txhua lub disc yog nyias hlau phaj, uas tsim cov electrode. Thaum ib tug sinusoidal hluav taws xob teeb liab yog pub rau lub transducer ntawm lub electrodes, cov discs nthuav thiab daim ntawv cog lus, ua axial vibrations Ultrasonic system muab faib ua peb ntu, ultrasonic generator, ultrasonic transducer thiab ultrasonic tuag, nrog rau peb seem yog ib tug ua tiav ultrasound system.
Daim ntawv thov:
Cov khoom siv welding no Digital ultrasound tshuab vuam tshuab ultrasonic tsis tsuas yog haum rau vuam lanyard, tab sis kuj tau siv dav hauv kev lag luam tsheb, kev lag luam hluav taws xob, kev lag luam kho mob, kev lag luam khoom siv hauv tsev, cov khaub ncaws dawb, khoom siv hauv chaw ua haujlwm, ntim khoom, kev lag luam khoom ua si thiab lwm yam. . Siv rau cov khoom ua si, hluav taws xob, hnab yas thiab cov khoom siv roj hmab me me ntawm vuam thiab sib sau. Ultrasonic Vuam tsim rau ABS / PE / PC / PS / PVC / PP khoom Ultrasonic vuam; ABS-PC complex vuam, acrylic Ultrasonic vuam thiab lwm yam,
1. Cov Khoom Ua Si Kev Lag Luam: cov khoom ua si phom, xov tooj, rag me me, cov khoom ua si yas dav dav.
2. Electronics: Glue watchcase, nylon pluaj, khoos phis tawj, lub hnab ntim suab, lub xov tooj ntawm tes roj teeb
3. Lub teeb kev lag luam: rear teeb, cornering teeb, averting daim iav, thiab lwm yam.
4. Kev lag luam ntim khoom: lub thawv tshuaj pleev ib ce, PVC lub thawv, cov tshuaj txhuam hniav, thiab lwm yam.
5. Cov khoom lag luam dav dav: tshuab ntaus ntawv ribbon, video box, tape box, computer disks, thiab lwm yam.
FAQ
Yuav ua li cas xa koj cov khoom rau peb?
A: Koj ib txwm qhia rau cov neeg siv khoom xaiv FedEx, DHL, UPS, TNT, yog tias koj qhov kev txiav txim tsis loj,
yog tias koj qhov kev txiav txim loj, los ntawm huab cua los yog hiav txwv tej zaum yuav txuag tau ntau tus nqi shipping. Thiab tus nqi thauj khoom nyob ntawm qhov hnyav tag nrho ntawm koj qhov kev txiav txim
