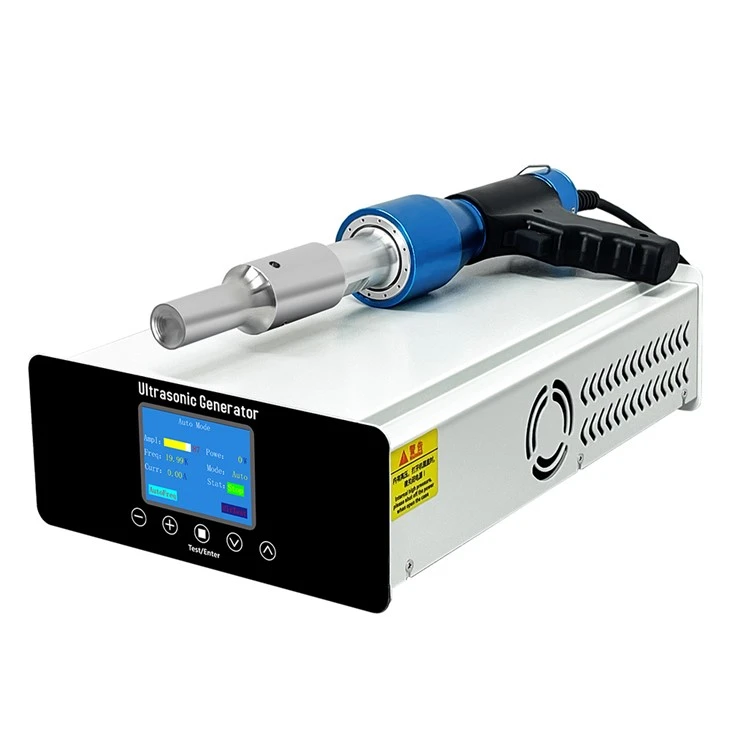

Tes Tswj Ultrasonic Welder

Tes Tswj Ultrasonic Welder yog tsim rau cov khoom siv uas tsis tas yuav tsum muaj kev sib txuas ntawm tag nrho txoj kev vuam. Lawv yog lub teeb yuag thiab siv tau yooj yim, ua rau lawv haum rau cov xwm txheej sab nraum zoov. Spot welding machines muaj ntau yam zoo, yoog raws, thiab tus nqi-zoo, yog li lawv tseem muaj kev sib tw muaj zog hauv ntau qhov chaw vuam.

Qhov zooNtawm Tes Tswj Ultrasonic Welder

1 - Kev ua tau zoo tshaj plaws

Los ntawm kev saib xyuas ultrasonic vuam los ntawm lub sijhawm, lub zog, lub zog, thiab qhov siab txwv, tag nrho cov txheej txheem vuam raug kuaj pom hauv lub sijhawm tiag tiag, ua kom muaj txiaj ntsig zoo ntawm tag nrho cov txheej txheem vuam thiab txo qis kev siv zog hauv kev tsim khoom.

2 - Kev txuag nqi thiab kev tiv thaiv ib puag ncig

Cov txheej txheem vuam tag nrho yog huv thiab tsis muaj kuab paug, vim tsis muaj cov kuab tshuaj lom lossis cov nplaum siv thaum lub sijhawm vuam, thiab cov khoom nws tus kheej tsis raug puas tsuaj, zam qee qhov teeb meem ntawm cov txheej txheem vuam thiab kev sib txuas thiab txuag cov nqi vuam. Vim nws cov yam ntxwv ua tiav hluav taws xob, cov cuab yeej siv no tsis tas yuav tsum tau saib xyuas qib siab.

Ceev kom zoo dua

Lub voj voog vuam ib txwm nyob hauv 0.5 vib nas this, thiab piv rau lwm txoj kev vuam, qhov vuam ceev nrawm dua. Cov txheej txheem vuam no nrawm dua li cov nplaum los yog cov kuab tshuaj. Lub sij hawm txias yog ceev heev, thiab lub workpiece tsis tas yuav tsum tau muab tso rau hauv lub cuab tam rau lub sij hawm ntev kom qhuav los yog solidify lub welded sib koom.

3 - Kev ua haujlwm yooj yim

General ultrasonic chaw vuam cov cuab yeej belongs rau cov tshuab me me, uas yog lub teeb rau kev khiav lag luam thiab tsis tas yuav tsum muaj kev txawj ntse. Tom qab siv, nws yooj yim khaws cia thiab tsis siv ntau qhov chaw. Ergonomics thiab lub teeb yuag kev sojntsuam tuaj yeem txo cov neeg ua haujlwm qaug zog. Lub teeb yuag nrog kev sib koom ua ke ua rau lub cuab yeej txav tau yooj yim thiab pab txhawb lub Hoobkas txav.

High welding raug

High precision thrust tswj thiab precision vuam qhov tob tswj xyuas kom tag nrho cov vuam zoo thiab zam tsis ruaj tsis khov vuam. Xyuas kom meej ib theem ntawm vuam zoo kom tsis txhob cov khoom blackening los yog hlawv.

SpecificationNtawm Tes Tswj Ultrasonic Welder

Kev sivNtawm Tes Tswj Ultrasonic Welder

1) Ua ntej, txuas hauv av xaim txuas rau lub zog hluav taws xob - txuas cov khoom siv cua - tig rau lub hwj chim, thiab qhov taw qhia lub teeb yuav qhib.

2) Tig lub hwj chim hloov ntawm lub tshuab hluav taws xob ultrasonic, lub hwj chim taw qhia lub teeb yog nyob rau, qhov tso zis txhaum qhov taw qhia teeb yog me ntsis rau, thiab lub hwj huam hloov pob qhov rooj yog muab tso rau hauv ib qho chaw me me.

3) Hauv kev siv, vim qee qhov laj thawj, qhov tso tawm qhov teeb meem qhov teeb meem tshwm sim, ua rau muaj kev tiv thaiv overcurrent. Lub sijhawm no, nws yuav tsum tau muab tua: tig lub zog hloov lub pob qhov rooj rov qab, txo lub zog, thiab tom qab ntawd tig rau kev ua haujlwm.

4) Thaum lub sij hawm ib txwm welding, qhov welded ib feem yuav raug clamped rau lub vuam fixture, thiab tus taw hloov yuav raug nias los ua ib tug vuam txheej txheem.

5) Kho lub "Vuam Sijhawm" khawm kom nce lub sijhawm vuam clockwise thiab txo nws counterclockwise.

6) Lub zog, lub sijhawm, thiab lub siab yog peb yam tseem ceeb rau kev siv vuam tshuab, thiab qhov sib txawv ntawm cov khoom ua haujlwm yuav tsum muaj lub zog sib txawv. Lub sijhawm, excitation, thiab rov kho dua kom ua tiav cov txheej txheem zoo dua.

7) Thaum lub tshuab hluav taws xob tshem tawm, lub tshuab hluav taws xob tsis tuaj yeem qhib rau lub sijhawm ntev, txwv tsis pub nws yooj yim los tsim kom muaj cua sov thiab ua rau cov transducer puas.

8) Tom qab siv, nco ntsoov tua lub hwj chim hloov.

Cov kev ceev fajrau siv ultrasonic chaw vuam tshuab

1. Ultrasound ncaj qha siv 220V mains fais fab, yog li lub cev yuav tsum tau muab tso rau hauv av kom zoo ua ntej siv, thiab cov av tiv thaiv yuav tsum tsawg dua 4 ohms.

2. Thaum lub mains voltage hloov ntau tshaj 10%, lub tshuab yuav tsum tau nruab nrog ib tug AC voltage stabilizer los xyuas kom meej lub efficiency thiab zoo ntawm lub Ultrasonic vuam tshuab.

3. Tom qab fais fab tuag, tsis txhob muab koj txhais tes tso rau hauv lub vuam pwm sab sauv kom tsis txhob muaj kev vibration ntau zaus thiab kev puas tsuaj rau high-voltage.

4. Thaum lub suab ultrasonic tawm, lub vuam pwm sab saud yuav tsum tsis txhob tuaj rau hauv kev sib cuag nrog cov pwm vuam qis, kev sib txuas, thiab lub rooj zaum ua haujlwm kom tsis txhob muaj kev puas tsuaj rau lub tshuab.

5. Ua ntej Ultrasonic welding, nws yog ib qho tseem ceeb uas yuav tsum tau ua lub suab nthwv dej kom paub meej ua ntej, thiab hloov cov vuam tuag nrog nws. Txoj haujlwm no tsis tuaj yeem tsis quav ntsej.

6. Tsim, txheej txheem, thiab kho cov vuam pwm, txwv tsis pub nws yuav ua rau lub zog hloov pauv ultrasonic ntawm lub tshuab vuam.

7. Lub tshuab pneumatic yog tsim los ntawm cov khoom siv yas, thiab cov cua sab nraud ntawm cov cua siab siv yuav tsum tsis pub tshaj 0.5Mpa, txwv tsis pub nws yuav ua rau tawg lossis ua rau lub tshuab hlawv.

8. Lub suab nrov yuav raug tsim thaum qhov zaus ntawm Ultrasonic vuam txo. Nws raug pom zoo tias cov neeg ua haujlwm mus sij hawm ntev hnav lub pob ntseg tiv thaiv.

Yog xav paub ntxiv txog Tes Tswj Ultrasonic Welder, thov koj xav tiv tauj peb!
