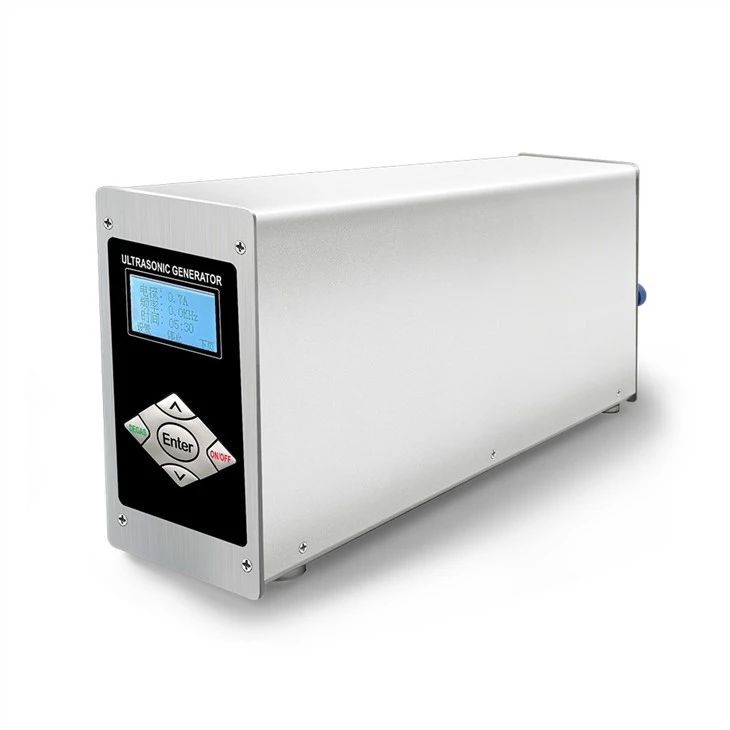

Ultrasonic Ntxuav Vibration Generator
Cov Khoom Muag Khoom Muag: JYD-1800S yog tus kheej tsim modular thiab ntse ultrasonic tu lub tshuab hluav taws xob, nrog ib qho tseem ceeb degassing, tsis siv neeg zaus taug qab, lub zog tsis tu ncua, kev saib xyuas tsis zoo, PLC tswj, RS485 tswj thiab lwm yam haujlwm, LCD zaub , tau...
Ultrasonic Ntxuav Vibration Generator
Product Discription:
Jyd-1800s yog modular thiab ntse ultrasonic tu generator ntawm nws tus kheej tsim. Nws muaj lub luag haujlwm ntawm ib qho tseem ceeb degassing, tsis siv neeg zaus taug qab, qhov tso zis hluav taws xob tas li, kev saib xyuas tsis zoo, PLC tswj, RS485 tswj, LCD zaub screen thiab kho kom haum, uas tuaj yeem ua tau raws li kev tu cov kev xav tau ntawm cov ntawv thov sib txawv. Tsis tas li ntawd, nws yog sib xws nrog 20-40khz / 50-68khz / 80-100khz vibrating phaj. Lub ntsiab zoo ntawm jyd-1800s ultrasonic tu generator yog tias nws cov tsos siv ntsug tsim, ntim me me, lub teeb yuag, muaj zog ultrasonic tu nyhuv, tsis tshua muaj suab nrov thiab ntev kev pab cuam lub neej.
Lub ntsiab nta:
LCD zaub, tuaj yeem hloov kho;
Lub tshuab hluav taws xob tsis siv neeg nrhiav lub tshuab hluav taws xob tuaj yeem taug qab qhov kev vibration zaus hauv lub sijhawm luv luv, uas yooj yim rau cov kws tshaj lij los daws qhov teebmeem ultrasonic;
Kev tsim hluav taws xob tas li ua kom muaj qhov sib xws ntawm ultrasonic tu nyhuv;
Ib qho tseem ceeb degassing muaj nuj nqi tuaj yeem txhim kho kev tu kom zoo kom tau raws li qhov sib txawv ntawm daim ntawv thov kev thov;
Kev saib xyuas kev ua haujlwm tsis zoo, kev sib koom ua ke ntawm kev tiv thaiv tam sim no, kev tiv thaiv kub dhau, lub tswb tsis tshua muaj tam sim no, lub tswb nrov tam sim no;
PLC, RS485 tswj;
Kev hloov pauv tam sim no thiab zaus tuaj yeem ua haujlwm los ntawm cov yuam sij vaj huam sib luag;
Lub tshuab hluav taws xob tu ultrasonic yog sib xws nrog 20-40KHz; 50-68KHz; 80-100KHz vibration phaj;
Lub ntsej muag txais kev tsim qauv ntsug, me me thiab lub teeb yuag.
Technical Parameter:
| Qauv | Tsav zog (max) | Tswj fais fab (%) | Ua haujlwm zaus (KHz) | Kev khiav hauj lwm voltage (V) | Maximum tso zis tam sim no (A) | ambient kub (degree) | Khoom hnyav (kg) | Qhov Loj (L / W / H: mm) |
| JYD-1800S | 600-2000W | 10-100 feem pua | 20-40 | 220V ± 10%. 50/60Hz | 7 | 0-40 | 5.5 | 430 * 96 * 180 hli |
| JYD-1800S-EG | 600-1500W | 10-100 feem pua | 50-68 | 5 | ||||
| JYD-1800SG | 600-1500W | 10-100 feem pua | 80-130 | 5 |
FAQ:
Lub zog hloov ntawm Ultrasonic Cleaning Vibration Generator ntawm lub tshuab ntxuav li cas?
Feem ntau hais lus, lub tshuab hluav taws xob ultrasonic uas nyuam qhuav yuav tau ua qhov zoo tshaj plaws ntawm qhov zaus thiab lub zog ntawm ultrasonic yoj ua ntej nws tawm hauv lub Hoobkas. Tus neeg siv tsuas yog yuav tsum tau kho lub hwj chim potentiometer lossis lub zog hloov khawm ntawm lub tshuab hluav taws xob ultrasonic. Yog tias lub zog ultrasonic tsis ua rau lub ntsej muag ntawm qhov chaw tu, lub zog tuaj yeem hloov kho qhov siab tshaj plaws. Yog tias lub zog ultrasonic muaj qee yam kev puas tsuaj rau cov khoom tu, ces peb yuav tsum xav txog kev kho lub zog ultrasonic rau 60 feem pua -80 feem pua thiab tom qab ntawd saib xyuas qhov kev puas tsuaj ntawm cov khoom tom qab ntxuav.
Nws tsis yog qhov siab dua ntawm lub zog ultrasonic, qhov zoo ntawm kev tu cov nyhuv. Muaj ntau ntau yam tuaj yeem cuam tshuam cov nyhuv tu. Ultrasonic nqus tsev vacuum tsis tas yuav muaj kev sib raug zoo nrog (lub zog × tu lub sijhawm). Thaum lub tshuab ntxhua khaub ncaws ultrasonic tshem tawm cov av, yog tias lub zog ncav cuag ib qho nqi, cov av qee zaum tshem tawm sai. Yog hais tias lub hwj chim xaiv loj dhau lawm, lub cavitation lub zog yuav zoo heev, thiab cov nyhuv tu yuav zoo dua, tab sis lub sij hawm no, qhov tseeb dua qhov yuav corroded, uas tsis tsim nyog poob.
