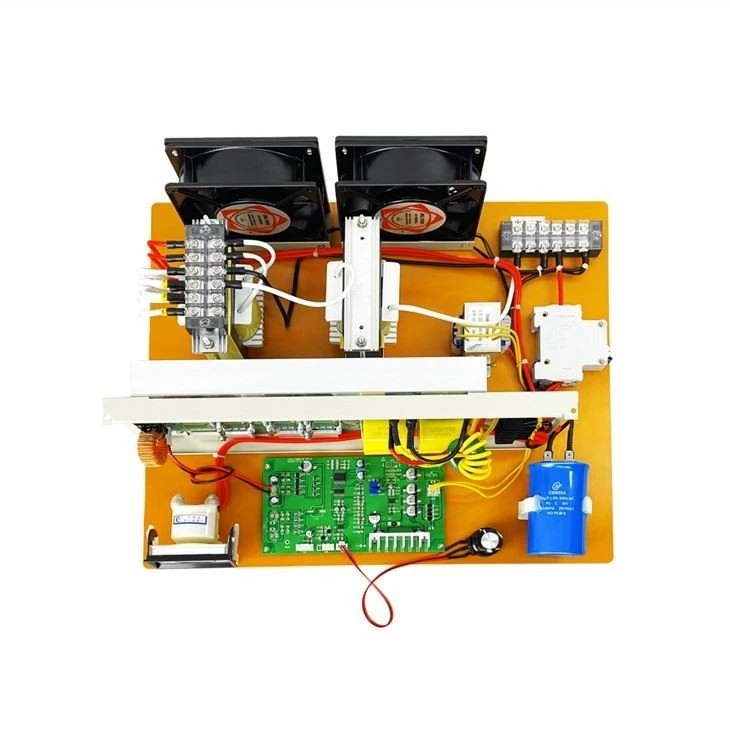

Digital Ultrasonic PCB Tsav Tsheb
Digital ultrasonic PCB tsav tsheb, tseem hu ua ultrasonic fais fab lub thawv, ultrasonic fais fab mov, ultrasonic fais fab tswj lub thawv thiab PCB hom ultrasonic generator, uas feem ntau tau hloov phau ntawv tu tam sim no. Nws yog tsim rau electronics, hardware, circuit, electroplating, stainless hlau, ceramics, teeb pom kev zoo, automotive kev lag luam, tableware disinfection, precision instruments, optics thiab lwm yam industries, thiab uas muaj qhov zoo ntawm high efficiency, tsis tshua muaj nqi, zoo huv si, tsis muaj lub kaum sab xis tuag. , muaj zog practicability, thiab lwm yam.
Digital ultrasonic PCB tsav tsheb, tseem hu ua ultrasonic fais fab lub thawv, ultrasonic fais fab mov, ultrasonic fais fab tswj lub thawv thiab PCB hom ultrasonic generator, uas feem ntau tau hloov phau ntawv tu tam sim no. Nws yog tsim rau electronics, hardware, circuit, electroplating, stainless hlau, ceramics, teeb pom kev zoo, automotive kev lag luam, tableware disinfection, precision instruments, optics thiab lwm yam industries, thiab uas muaj qhov zoo ntawm high efficiency, tsis tshua muaj nqi, zoo huv si, tsis muaj lub kaum sab xis tuag. , muaj zog practicability, thiab lwm yam.
Yam khoom qauv | JYD-801E | JYD-802E | JYD-803E | JYD-804E |
Tsav Tsheb Muaj Peev Xwm | 600W-1000W | 1000W-1500W | 1500W-2100W | 2100W-2700W |
Tswj fais fab | 10-100 feem pua adjustable | 10-100 feem pua adjustable | 10-100 feem pua adjustable | 10-100 feem pua adjustable |
Kev khiav hauj lwm zaus | 20KHz-40KHz | 20KHz-40KHz | 20KHz-40KHz | 20KHz-40KHz |
Kev khiav hauj lwm voltage | AC220V ± 10% 50Hz | AC220V ± 10% 50Hz | AC220V ± 10% 50Hz | AC220V ± 10% 50Hz Z |
Ammeter Range | 5A | 8A | 10A | 15A |
Max. Tso zis tam sim no | 3A | 5A | 7A | 9A |
Ambient Kub | 0-40 degree | 0-40 degree | 0-40 degree | 0-40 degree |
Net nyhav | 8 KG | 10 KG | 12 KG | 12 KG |
Zuag qhia tag nrho Dimensions | 305 × 385 × 150 hli | 370 × 420 × 150 hli | 370 × 420 × 150 hli | 370 × 420 × 150 hli |
Tus neeg tsav tsheb ntawm digital ultrasonic PCB lub tshuab hluav taws xob muaj qhov ua haujlwm ntawm qhov zaus zoo-tuning, thiab qhov kev hloov kho yog 2 feem pua. Kev nplua-tuning tuaj yeem ua tau raws li kev ua haujlwm sib txawv, kom lub ultrasonic tu transducer tuaj yeem ua haujlwm hauv lub xeev zoo tshaj plaws, thiab nws ua tiav lub zog siab tshaj plaws uas muaj txiaj ntsig zoo tshaj plaws hauv kev ua haujlwm sib txawv.
Lub tshuab hluav taws xob ultrasonic muaj kev ua haujlwm ntawm zaus cheb. Los ntawm ultrasonic zaus cheb rov qab thiab tawm hauv qhov tsim nyog ntau yam thaum lub sij hawm ntxuav, cov kua ntxuav yog tsav los ua ib qho zoo reflux, kom cov workpiece av tuaj yeem ceev ceev ntawm lub workpiece nto thaum raug stripped los ntawm ultrasonic, thiab tu. efficiency tuaj yeem txhim kho.
Tus neeg tsav tsheb digital ultrasonic PCB muaj lub zog hloov ua haujlwm, thiab lub zog tso zis tuaj yeem hloov kho tsis tu ncua nyob rau hauv thaj tsam ntawm 10 feem pua -100 feem pua kom ua tau raws li qhov yuav tsum tau muaj ntawm ntau yam khoom siv tu.Nws tuaj yeem muab faib ua zaus adjustable ultrasonic generator, low-power ultrasonic generator, high-frequency ultrasonic generator, high-function ultrasonic generator thiab cov zaub ultrasonic generator.
