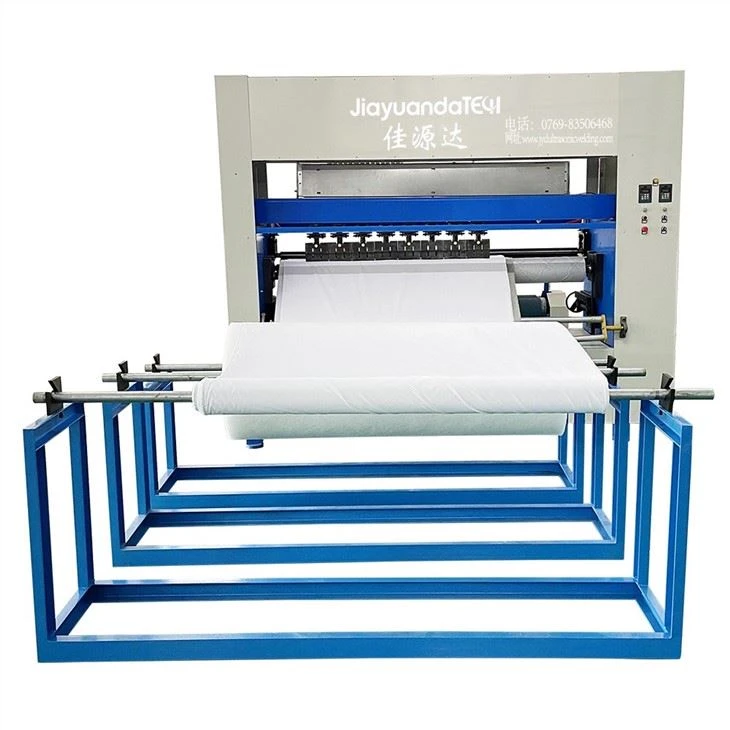

Ultrasonic Tsis-Woven txaj Laminating Tshuab
Ultrasonic Non Woven Mattress Laminating Machine XF20-}L2000-T13 yog cov txheej txheem ntau txheej txheej txheem wireless daim ntaub laminated ultrasonic composite cov cuab yeej muaj li ntawm 7-inch HMI human-computer kev sib cuam tshuam, kov tswj, pneumatic system thiab tsis siv neeg zaus nrhiav ultrasonic system. Nws tuaj yeem raug txhais raws li qhov dav dav thiab cov qauv ntawm cov neeg siv khoom; Txhua pawg ntawm ultrasonic siab yog tswj los ntawm ib cheeb tsam thiab kho nws tus kheej. Cov qauv siv hluav taws xob muaj qhov zoo ntawm cov vuam precision siab, ntxuav ntawm vuam kab, muaj zog peb-dimensional kev nkag siab, muaj zog adhesion thiab hloov qauv yooj yim
Taw qhia
Ultrasonic non-woven txaj laminating tshuab XF20-L2000-T13 yog ib qho tshwj xeeb multi-txheej wireless txheej txheem ntaub laminating ultrasonic composite cov cuab yeej, uas yog tsim los ntawm 7-inch HMI human-computer kev sib cuam tshuam , kov tswj, pneumatic system thiab tsis siv neeg zaus taug qab ultrasonic system. Nws tuaj yeem raug txhais raws li qhov dav dav thiab cov qauv ntawm cov neeg siv khoom. Lub siab ultrasonic ntawm txhua pab pawg yog tswj los ntawm thaj chaw thiab kho nws tus kheej. Cov qauv siv hluav taws xob muaj qhov zoo ntawm cov vuam precision, huv welding nto kab, muaj zog peb-dimensional kev nkag siab, muaj zog adhesion thiab hloov pwm yooj yim.
Technical Parameters:
| Qauv nab npawb | Ua haujlwm zaus (max) | Lub zog ua haujlwm | Qhov hluav taws xob | Vuam ceev (max) | Vuam dav (max) | Tswj qhov system | HMI kov zaub | Lub cev loj (L / W / H: mm) | Ua haujlwm tag nrho qhov loj (L / W / H: mm) |
| XF20-L2000-T13 | 20 KHz | 39 kWv | 220V 50/60Hz | 30m / min | 2000 hli | PLC | 7 nti | 2900*900*2400 | 5000*900*2400 |
Ultrasonic xaws tshuab yog ib tiam tshiab ntawm ultrasonic lace tshuab khoom nyob rau hauv Suav teb. Nws siv lub hauv paus ntsiab lus ultrasonic kom paub txog kev ua haujlwm tsis muaj koob, thiab tuaj yeem sib cog lus thiab emboss ntau yam tshuaj fiber ntau fabrics, non-woven fabrics, sprayed paj rwb, tawv tawv thiab lwm yam fabrics.The ultrasonic embossing tshuab yog yooj yim thiab yooj yim rau kev khiav lag luam, tus qauv yog ntshiab thiab zoo nkauj, thiab cov ntaub yog tsis deformed. Lub paj log tuaj yeem hloov pauv raws li qhov xav tau ntawm cov neeg siv khoom, thiab cov qauv sib txawv thiab cov teebmeem tuaj yeem raug nias tawm tib lub sijhawm. Lub tshuab xaws ultrasonic yog tsim los ntawm plaub ntu: lub cav loj, lub thawv hluav taws xob, lub tshuab winding thiab unwinding.
Ultrasonic nonwoven txaj laminating tshuab nta:
1. Tsis tas yuav siv rab koob thiab xov, tshem tawm qhov teeb meem ntawm kev hloov cov xov, cov khoom zoo nkauj.
2. Nws muaj kev nkag siab zoo dua thiab ua raws li cov qauv ntawm lub sijhawm.
3. Raws li qhov xav tau, tus qauv tuaj yeem hloov pauv arbitrarily.
4. Lub zog stitching siab thiab kev siv tau zoo.
Kev siv ntau yam:
Kev tsim cov khoom sib xyaw ntawm ntau yam tshuaj fiber ntau cov ntaub, cov khoom siv tawv tawv thiab cov paj rwb, cov ntaub tsis-woven lossis rab koob punched paj rwb. Cov qauv tuaj yeem tsim dawb. Kev tsim cov ntaub rau khaub ncaws, ntaub pua chaw, hauv ncoo, sofas, thiab upholstery.
Lub tshuab ultrasonic compound embossing txuag qhov teeb meem ntawm kev hloov cov koob thiab xov ntau zaus. Txawm hais tias tsis muaj qhov sib tsoo ntawm cov tsoos stitching, nws tuaj yeem ua kom zoo nkauj txiav thiab khi ib feem ntawm lub hnab tsis-woven, thiab cov suture kuj plays lub luag haujlwm zoo nkauj. Nws muaj zog adhesion, tuaj yeem ua tiav cov nyhuv waterproof. Embossing yog qhov tseeb, thiab cov tsos muaj cov nyhuv tiaj tus. Kev ua haujlwm ceev ceev, cov khoom siv zoo thiab lav zoo.
Lub tshuab ultrasonic lace kuj tuaj yeem hloov cov paj sticks ntawm yuav raws li cov neeg siv khoom xav tau, thiab tuaj yeem nias tawm cov qauv ntawm cov qauv sib txawv thiab cov teebmeem sib txawv.
