Ultrasound Fabric Sealing Tshuab

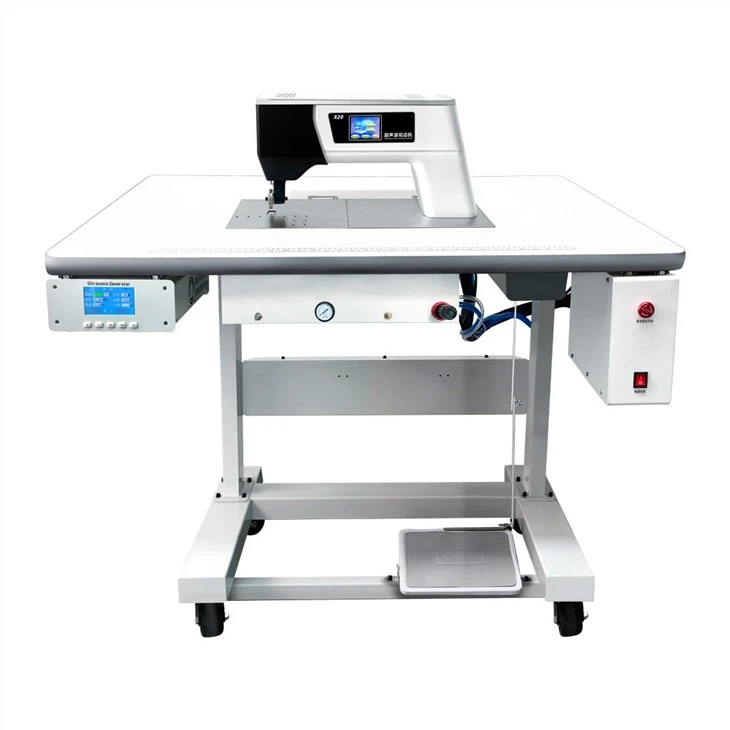

X20 ultrasonic lace tshuab yog 35khz ntse ultrasonic vuam tshuab. Kev txawj ntse tom qab ultrasonic generator, high-Q transducer, thiab hnav-tiv taus lub taub hau yog tsim los ntawm ultrasonic core Cheebtsam. Tsis muaj teeb meem nws yog siv hauv kev txiav, vuam, thiab stitching, cov khoom yog tiaj tus, wrinkle-dawb, thiab muaj txiaj ntsig zoo. Tshuab HMI tswj, ceev customization, cov ntaub ntawv cia, siab hloov, paj log ntau haiv neeg, txawv txav tswb thiab lwm yam functions ....
Ultrasound Fabric Sealing Tshuab yog dav siv nyob rau hauv kev lag luam khaub ncaws seamless, qhov chaw fusion ntawm ob fabrics yuav tsum tau siv cov tshuab xaws ultrasonic. Lub tshuab xaws ultrasonic no muaj lub tshuab xaws nrov nrov uas tsis tas yuav muaj kev cob qhia tshwj xeeb kom ua haujlwm tau zoo. Nws tsuas yog ua haujlwm zoo li cov tshuab xaws uas twb muaj lawm. Ultrasonic tshuab xaws yuav txiav thiab kaw ntaub ntaub. Tom qab rov qhib kev txiav thiab kev sib khi, cov ntaub ntawv sib txuas cov kab yuav luag tsis pom thiab cov seams yuav tsis tuab dua li cov ntaub nws tus kheej.
Parameters ntawm Ultrasound Fabric Sealing Tshuab
| Qauv | X20 | X20S |
| Ultrasonic zaus | 35 KHz | 35khz ua |
| Ultrasonic zog | Tsawg dua lossis sib npaug li 1000W | Tsawg dua lossis sib npaug li 1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic boosters | / | / |
| Lub cev muaj zog | Stepper lub cev muaj zog + reducer400W 2.7A 1.27NM | Stepper lub cev muaj zog + reducer400W 2.7A |
| Reducer | Piv txwv li 1:10 | Piv txwv li 1:10 |
| Txoj kev ua haujlwm | Radially sab nraud | Radially sab nraud |
| Qhov dav dav | Tsawg dua los yog sib npaug li 8 hli | Tsawg dua los yog sib npaug li 8 hli |
| Paj log txoj kab uas hla | 45mm ib | 45mm ib |
| Max ceev | 40m / min | 40m / min |
| Chaw ua haujlwm | 360mm * 130mm | 360mm * 130mm |
| Tshuab lub cev loj | 500mm * 125mm * 265mm | 500mm * 125mm * 265mm |
| Tag nrho lub tshuab loj | 1210 * 600mm * 1100mm | 1210 * 600mm * 1100mm |
| Fais fab mov | 220v ± 10% 50-60Hz | 220v ± 10% 50-60Hz |
| Cov txheej txheem pob | Export ntoo rooj plaub | Export ntoo rooj plaub |
| Pob loj | 1250mm * 700mm * 1130mm | 1250mm * 700mm * 1130mm |
| Qhov hnyav | 129.3 KWG | 129.3 KWG |
Nta ntawm Ultrasound Fabric Sealing Tshuab
1. 35KHZ1000W high-power tsis siv neeg tiv thaiv ultrasonic generator;
2. Radial seam vuam tshuab, zoo ultrasonic transducer ntaus ntawv;
3. Super muaj zog lub taub hau qauv ntawm lace roller;
4. Phau ntawv (los yog xaiv pneumatic) modular lifting system;
5. Lub tripod zoo nkauj thiab muaj zog, uas yooj yim rau kev txij nkawm txhua hnub;
Specification:
1. Imported piezoelectric nti, muaj zog thiab ruaj khov tso zis
2. Cov qauv log yog ua los ntawm cov hlau alloy tshwj xeeb, hnav-tiv taus thiab lub neej ntev vuam taub hau
3. Tshem tawm lace pwm, adjustable eccentricity, siab yooj thiab ceev, siab theem
4. Kev khiav ceev yog ceev, qhov ceev tuaj yeem hloov kho, cov khoom tiav cov txiaj ntsig zoo, thiab qhov zoo yog lav.
5. Kev sib dhos ntawm tag nrho cov khoom siv tuaj txawv teb chaws, kev ua haujlwm ruaj khov
Daim ntawv thov
Haum rau ntau lub hom phiaj
Multifunctional tshuab
Yuav siv tau nyob rau hauv ntau yam kev thov scenarios
Cov khaub ncaws tiv thaiv
Lace
ris tsho hauv qab
Npuag khi
FAQ
Q: Puas yog ultrasound ntaub sealing tshuab yooj yim rau kev khiav lag luam? Nws puas yooj yim kawm?
A: Tag nrho cov nyees khawm digital, yooj yim rau kev khiav lag luam, muaj cov yeeb yaj kiab qhia rau cov neeg siv khoom.
Q: Puas yog qhov txiav du? Puas yuav muaj cov npoo xoob lossis cov npoo dub?
A: Ultrasonic txiav tsis muaj npoo xoob, burrs, lossis cov npoo dub. Nws muaj cov nyhuv txiav zoo thiab tshwj xeeb tshaj yog tsim rau kev txiav qee cov khoom lag luam siab.
Q: Puas yog ultrasound cuam tshuam rau tib neeg lub cev?
A: Yuav tsis muaj kev cuam tshuam thiab nws tuaj yeem siv tau zoo.
Q: Kuv puas tuaj yeem txiav ntau cov duab? (Dovetail, fillet, bevel)
A: Yog, koj tuaj yeem txiav ntau cov duab thiab kho cov pwm. Lub voj voog ntau lawm yog li 5 hnub ua haujlwm.
Q: Ntev npaum li cas tuaj yeem hloov kho?
A: Qhov ntev tuaj yeem teeb tsa dawb, thiab kev ua haujlwm ntawm lub vijtsam kov tau yooj yim heev.
Q: Muaj pes tsawg discs tuaj yeem txiav tib lub sijhawm?
A: Raws li qhov dav ntawm cov khoom, feem ntau 2.5cm dav cov khoom tuaj yeem txiav rau hauv peb yob tib lub sijhawm.
Q: Cov npoo ntawm qhov yuam kev yog dab tsi?
A: Tsis muaj cov khoom siv elastic, tsis muaj qhov yuam kev, ob txhiab feem pua ntawm qhov kev ua yuam kev ntau yam.
Q: Ntev npaum li cas lub tshuab xaws ntaub tuaj yeem siv tsis tu ncua?
A: Nws tuaj yeem ua haujlwm tsis tu ncua rau 24 teev, xyuam xim rau qhov cua thiab txo cov cua sov.
Q: Puas muaj kev suav ua haujlwm?
A: 10 cov ntaub ntawv tuaj yeem khaws cia.
Q: Muaj pes tsawg metres tuaj yeem txiav hauv ib teev?
A: Lub tshuab nqus hluav taws xob nrawm nrawm tuaj yeem txiav ntawm qhov siab tshaj plaws ntawm li 40m / min ib feeb.
Q: Tus nqi puas suav nrog se?
A: Tus nqi hauv online tsis suav nrog se, thiab tus nqi thauj khoom tsis suav nrog rau cov khoom loj.
Q: Lub sijhawm lav ntev npaum li cas? Puas yog lub tshuab ua haujlwm tsis zoo?
A: Ob xyoos lav thiab kev pab cuam tom qab muag tag nrho (tshwj tsis yog rau cov khoom hnav xws li pwm thiab cov menyuam).
Yog xav paub ntxiv ntawm Ultrasound Fabric Sealing Tshuab, thov koj xav tiv tauj peb!
