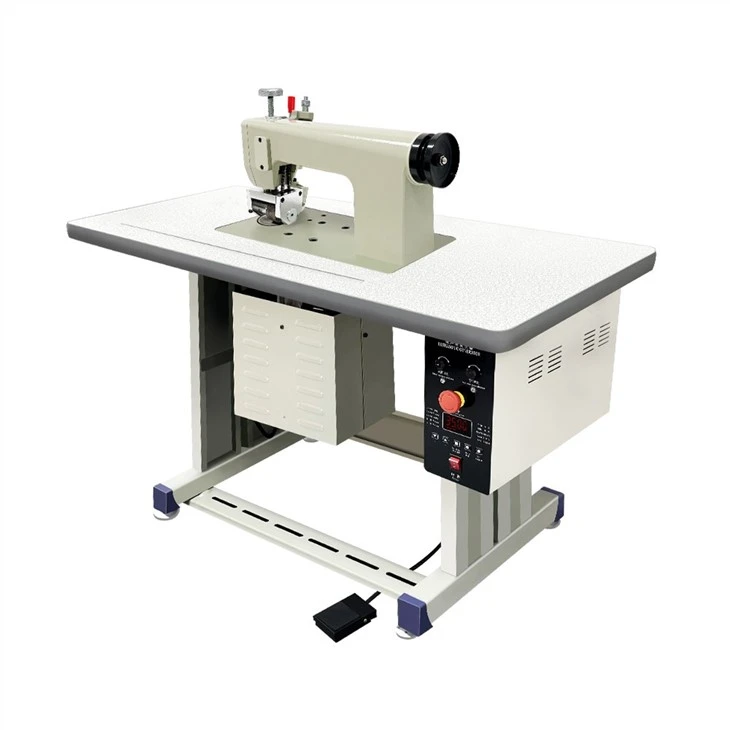

Ultrasonic Lace Curtain Tshuab
X30 yog phau ntawv muaj zog ultrasonic lace tshuab. Cov khoom tseem ceeb uas tsim los ntawm ib qho kev txawj ntse nrhiav ultrasonic generator, high-Q transducer, thiab cov cuab yeej hnav-tiv taus lub taub hau muaj kev ua tau zoo thaum siv hauv kev txiav, vuam, thiab stitching. Dual-motor tsav system, adjustable ceev, tsis siv neeg zaus mus txog qhovtwg ultrasonic generator tsav, phau ntawv ceev hloov, ntau yam xaiv ntawm paj log thiab txawv txav lub tswb muaj nuj nqi ....
X30 ultrasonic lace curtain tshuab yog ib qho ntse ntaub ultrasonic tshuab xaws. Lub tshuab no tsis tawm cov pa luam yeeb dub, tsis tsim cov nplaim taws thaum sib txuas, tsis xav tau preheating, thiab tsis xav tau qhov kub thiab txias, uas yooj yim siv thiab yooj yim rau kev khiav lag luam. Nws yog ua tib zoo tsim los ntawm kev siv cov thev naus laus zis ultrasonic hauv tsev thiab txawv teb chaws. Thaum lub sij hawm txoj kev xaws, cov ntaub ntaub lace ua los ntawm nws yog sib npaug zos, tsis muaj burrs, thiab muaj ib tug zoo nkauj tsos. Lub tshuab ultrasonic lace curtain yog tsim rau xaws ntau yam ntaub curtains nrog ntau yam khoom xws li tshuaj fiber ntau. Lace rollers tuaj yeem muab ib-rau-ib qho kev daws teeb meem raws li cov neeg siv khoom xav tau.
Tsis muaj
| Qauv | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic zaus | 20 KHz | 20 KHz | 20 KHz |
| Ultrasonic zog | Tsawg dua lossis sib npaug li 2600W | Tsawg dua lossis sib npaug li 2600W | Tsawg dua lossis sib npaug li 2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic boosters | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Lub cev muaj zog | Ib leeg / asynchronous lub cev muaj zog 60W 0.8A 110V 60Hz | Ib leeg / asynchronous lub cev muaj zog 60W 0.8A 110V 60Hz | Ib leeg / asynchronous lub cev muaj zog 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Txoj kev ua haujlwm | sab nraud | built-in | built-in |
| Qhov dav dav | Tsawg dua los yog sib npaug li 16 hli | Tsawg dua los yog sib npaug li 100mm | Tsawg dua los yog sib npaug li 210mm |
| Paj log txoj kab uas hla | 50 hli | 50 hli | 50 hli |
| Max ceev | 20m / min | 20m / min | 20m / min |
| Chaw ua haujlwm | 370mm * 155 hli | 370mm * 155 hli | 370mm * 155 hli |
| Tshuab lub cev loj | 500mm * 125mm * 265mm | 500mm * 125mm * 265mm | 500mm * 125mm * 265mm |
| Tag nrho lub tshuab loj | 1210 * 600mm * 1100mm | 1210 * 600mm * 1101mm | 1210 * 600mm * 1101mm |
| Fais fab mov | 220v ± 10% 50-60Hz | 220v ± 10% 50-60Hz | 220v ± 10% 50-60Hz |
| Cov txheej txheem pob | Export ntoo rooj plaub | Export ntoo rooj plaub | Export ntoo rooj plaub |
| Pob loj | 1250mm * 600mm * 1080mm | 1250mm * 600mm * 1080mm | 1250mm * 600mm * 1080mm |
| Qhov hnyav | 88.5 KWG | 88.5 KWG | 88.5 KWG |
Nta
1. Nws yog tsav los ntawm ib tug ntse tsis siv neeg zaus nrhiav ultrasonic generator nrog adjustable amplitude thiab hwj chim;
2. Lub tshuab tag nrho txais cov qauv casting, uas yog qhov ruaj khov thiab ruaj khov kom ntseeg tau tias vuam zoo dua thiab embossing nyhuv.
3. Ob chav motors tau tsav nce thiab nqis, thiab qhov ceev yog kho tau, thiab qhov ceev tshaj plaws tuaj yeem ncav cuag 20m / min (* qhov ceev no yog tus qauv, thiab qhov ceev tuaj yeem hloov kho raws li cov neeg siv khoom xav tau);
4. Lub paj log thiab hauv qab pwm ntawm lub tshuab ultrasonic lace curtain tuaj yeem tsim ntau yam paj qauv raws li cov neeg siv khoom xav tau. Yooj yim rau nruab thiab tshem tawm
5. Lub tshuab lace paj log thiab hauv qab steel pwm yog ua los ntawm cov hlau tshwj xeeb hlau thiab hnav-resistant cutter taub hau, uas ua kom lub neej ntev kev pab cuam.
6. Cov pwm hauv qab steel yog hnav-tiv taus thiab muaj lub neej ua haujlwm ntev; lub paj log thiab cov pwm hauv qab yog yooj yim rau disassemble thiab sib sau ua ke, thiab eccentric hloov yog hloov tau yooj yim thiab ceev, thiab theem kev hloov yog yooj yim.
FAQ
Q: Koj qhov zoo yog dab tsi?
A: Peb muaj tus kheej patent thiab tuaj yeem txais OEM kev pabcuam, thiab kev pabcuam zoo tomqab muag.
Q: Koj puas yog lub khw muag khoom lossis koj puas muaj koj lub Hoobkas?
A: Peb yog cov chaw tsim khoom, koom ua ke R & D thiab muag khoom. Peb muaj zoo meej ua ntej muag, muag thiab kev pab cuam tom qab muag.
Q: Koj lub tshuab Ultrasonic Lace Curtain zoo li cas?
A: Txhawm rau kom tau txais cov khoom lag luam txhim khu kev qha, thov qhia thiab sau tag nrho koj cov khoom zoo thiab cov qauv. Yog tias koj xav tau kev pom zoo tshwj xeeb hauv koj lub khw, thov qhia rau peb paub. Ua ntej peb tsim cov qauv rau koj. Ob tog yuav tsum pom zoo rau qhov zoo ntawm cov qauv ua ntej ntau lawm. Peb ib txwm muab cov neeg siv khoom nrog cov khoom lag luam txhim khu kev qha.
Q: Yuav ua li cas tso qhov kev txiav txim?
A: Hu rau cov neeg siv khoom, thov qhia rau peb ntawm koj cov kev xav tau lossis cov kev xav tau, peb yuav muab cov kev daws teeb meem rau koj. Koj tuaj yeem tso qhov kev txiav txim tam sim tom qab koj pom zoo.
Q: Lub warranty rau koj cov khoom yog dab tsi thiab cov kev pab cuam tom qab muag zoo li cas?
Teb: Peb cov khoom siv loj muaj kev tiv thaiv ob xyoos. Peb muaj pab neeg zoo tom qab muag. Lub sij hawm lav yog siv txij li hnub xa khoom lossis hnub ntawm daim nqi ntawm kev thauj khoom. Yog tias koj muaj lus nug lossis teeb meem, thov qhia rau peb ntawm email lossis xov tooj lossis fax hauv lub sijhawm kom peb tuaj yeem muab cov lus teb txaus siab rau koj.
Q: Muaj pes tsawg lub tshuab xaws ultrasonic kuv xav tau kom tau txais koj cov nqi lag luam wholesale?
A: Peb yog cov lag luam wholesale los ntawm ib chav tsev, tau kawg peb tuaj yeem muab koj tus nqi pheej yig dua yog tias muaj ntau ntau. Vim peb kuj muaj peb tus kheej lub zog factories.
Daim ntawv thov
Ultrasonic curtain lace tshuab tseem tuaj yeem xaws cov khoom hauv qab no: wireless stitching / embossing, tsoos tsho lace, tiv thaiv khaub ncaws, hnab, txaj pw, hauv ncoo, lub tsheb npog, tsev pheeb suab, ntim cov hlua, hnab ev ntawv, mus ncig, portable, curtains, raincoats, windbreakers
Yog xav paub ntxiv ntawm Ultrasonic Lace Curtain Tshuab, thov koj xav tiv tauj peb!
