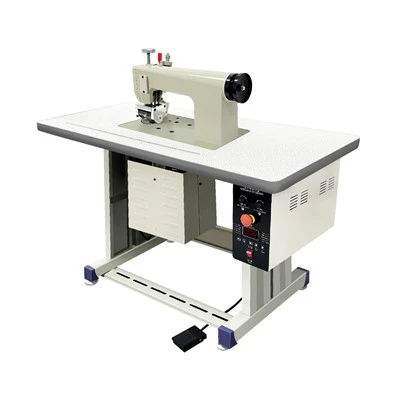

Ultrasonic Fabric Stitching Tshuab
X20 ultrasonic lace tshuab yog 35khz ntse ultrasonic vuam tshuab. Kev txawj ntse tom qab ultrasonic generator, high-Q transducer, thiab hnav-tiv taus lub taub hau yog tsim los ntawm ultrasonic core Cheebtsam. Tsis muaj teeb meem nws yog siv hauv kev txiav, vuam, thiab stitching, cov khoom yog tiaj tus, wrinkle-dawb, thiab muaj txiaj ntsig zoo. Tshuab HMI tswj, ceev customization, cov ntaub ntawv cia, siab hloov, paj log ntau haiv neeg, txawv txav tswb thiab lwm yam functions ....
Ultrasonic fabric lace tshuab yog ib yam khoom siv embossing rau kev xaws zoo. Lub 35kHz 1000W ultrasonic lace tshuab txais radial synchronous vibration tshuab, nrog kev ua haujlwm siab thiab du vuam nto tsis muaj burrs. Nws yog dav siv hauv khaub ncaws, khoom ua si, khoom noj khoom haus, khoom siv niaj hnub kho kom zoo nkauj, ib puag ncig tus phooj ywg tsis-woven hnab, tsis-woven npuag ua thiab lwm yam lag luam. Qhov no ultrasonic npuag stitching tshuab tau dav siv rau vuam, xaws, embossing thiab slitting ntau yam tshuaj fiber ntau fabrics. Ultrasonic wireless sewing muaj qhov zoo ntawm qhov siab du, tsis muaj burr, zoo weldability, waterproof thiab zoo nkauj tsos. Lub tshuab txais cov khoom siv ultrasonic txawv teb, pneumatic Cheebtsam thiab pwm, thiab nws cov efficiency yog siab dua li ntawm lwm yam khoom.
Parameters ntawm Ultrasonic Fabric Stitching Tshuab
| Qauv | X20 | X20S |
| Ultrasonic zaus | 35 KHz | 35khz ua |
| Ultrasonic zog | Tsawg dua lossis sib npaug li 1000W | Tsawg dua lossis sib npaug li 1000W |
| Ultrasonic generator | JYD-2700S | JYD-2700S |
| Ultrasonic transducer | JYD-3035-4P8-TMF | JYD-3035-4P8-TMF |
| Ultrasonic boosters | / | / |
| Lub cev muaj zog | Stepper lub cev muaj zog + reducer400W 2.7A 1.27NM | Stepper lub cev muaj zog + reducer400W 2.7A |
| Reducer | Piv txwv li 1:10 | Piv txwv li 1:10 |
| Txoj kev ua haujlwm | Radially sab nraud | Radially sab nraud |
| Qhov dav dav | Tsawg dua los yog sib npaug li 8 hli | Tsawg dua los yog sib npaug li 8 hli |
| Paj log txoj kab uas hla | 45mm ib | 45mm ib |
| Max ceev | 40m / min | 40m / min |
| Chaw ua haujlwm | 360mm * 130mm | 360mm * 130mm |
| Tshuab lub cev loj | 500mm * 125mm * 265mm | 500mm * 125mm * 265mm |
| Tag nrho lub tshuab loj | 1210 * 600mm * 1100mm | 1210 * 600mm * 1100mm |
| Fais fab mov | 220v ± 10% 50-60Hz | 220v ± 10% 50-60Hz |
| Cov txheej txheem pob | Export ntoo rooj plaub | Export ntoo rooj plaub |
| Pob loj | 1250mm * 700mm * 1130mm | 1250mm * 700mm * 1130mm |
| Qhov hnyav | 129.3 KWG | 129.3 KWG |
Nta ntawm Ultrasonic Fabric Stitching Tshuab
1. Ergonomic tsim.
2. 3.5-inch HMI txiv neej-tshuab intelligent interactive interface.
3. Radial synchronous vibration tshuab.
4. Hnav-resistant alloy cuab yeej lub taub hau, qhov siab tshaj plaws ua hauj lwm dav yog 16 hli.
5. Imported piezoelectric nti, muaj zog thiab ruaj khov tso zis.
6. Cov qauv log yog ua los ntawm cov hlau alloy tshwj xeeb, hnav-tiv taus thiab lub neej ntev vuam taub hau.
7. Detachable ultrasonic lace roller, eccentric hloov, siab yooj, ceev ceev thiab siab levelness.
8. Kev khiav ceev yog ceev, cov nyhuv yog zoo, thiab qhov zoo yog guaranteed.
9. Ib qho tag nrho ntawm cov khoom tuaj txawv teb chaws tau sib sau ua ke nrog kev ua haujlwm ruaj khov.
Function Description:
Sewing: Txhua yam ntawm cov ntaub tuaj yeem sewn ncaj qha, muaj peev xwm tsis muaj dej tsis zoo, tsis muaj koob thiab xov los ntawm ultrasonic.
Lace: Txhua yam tawv / ntaub tuaj yeem nias rau hauv ib qho qauv los ntawm ultrasonic, thiab cov ces kaum yog dawb ntawm burrs.
Kub stamping: Kub stamping ntawm ntau yam tawv / ntaub sai sai thiab zoo.
Hemming: Ultrasonic edging ntawm ntau yam tawv / ntaub.
FAQ
Q: Peb tuaj yeem tau txais lub tshuab sai npaum li cas?
A: Feem ntau, peb xaiv cov khoom thauj hauv hiav txwv rau cov tshuab tsis siv neeg loj, yog li thaum koj tso qhov kev txiav txim, peb yuav npaj xa khoom sai li sai tau.
Q: Peb puas yuav tsum tau nruab Ultrasonic Fabric Stitching Tshuab tom qab peb tau txais nws?
A: Peb yuav xa koj cov video shipping thiab phau ntawv ntawm lub tshuab ua ntej xa khoom tuaj qhia koj yuav siv lub tshuab li cas.
Q: Kuv puas tuaj yeem muab kuv LOGO / hom rau ntawm lub tshuab thiab ua tiav cov khoom?
A: Tau kawg koj tuaj yeem ua tau. Tsuas yog qhia thiab xa koj cov kev xav tau rau peb.
Q: Yuav ua li cas txog koj warranty?
A: Peb lub sijhawm lav yog 1 xyoos. Txhua yam tshuab tuaj yeem hloov pauv dawb yog tias puas nyob rau hauv 1 xyoos (tsis suav nrog kev tsim khoom)
Q: Koj tus engineer puas nkag siab lus Askiv?
A: Peb cov engineers tuaj yeem sib txuas lus ua lus Askiv. Tag nrho peb cov engineers muaj ntau tshaj tsib xyoos ntawm kev siv tshuab installation.
Daim ntawv thov
Txhua yam ntawm cov tawv nqaij thiab txhua yam ntaub, tsis-woven fabrics, spunbonded paj rwb, thermoplastic films, tshuaj yas los xij, xws li PS, PP non-woven fabrics, ABC, PC, polyester, nylon, PU, PE, PE + ntaub, PE + ntawv, PE + AL thiab lwm yam.
Kuj tseem tuaj yeem sewn cheeb tsam:
Cov ris tsho hauv qab, ribbons, sportswear, ntim, xov tooj ntawm tes, cov khoom knitted, tents, handbags, handbags, bedspreads, tablecloths, handkerchiefs, curtains, da dej curtains, nyias pam, silk scarves, ribbons / shoelaces, khaub ncaws, pov tseg phais gowns thiab kaus mom, pov tseg qhov ncauj qhov ntswg, tsis-woven fabrics, kaus laces, hnub so decorations, thiab lwm yam.
Yog xav paub ntxiv ntawm Ultrasonic Fabric Stitching Tshuab, thov koj xav tiv tauj peb!
