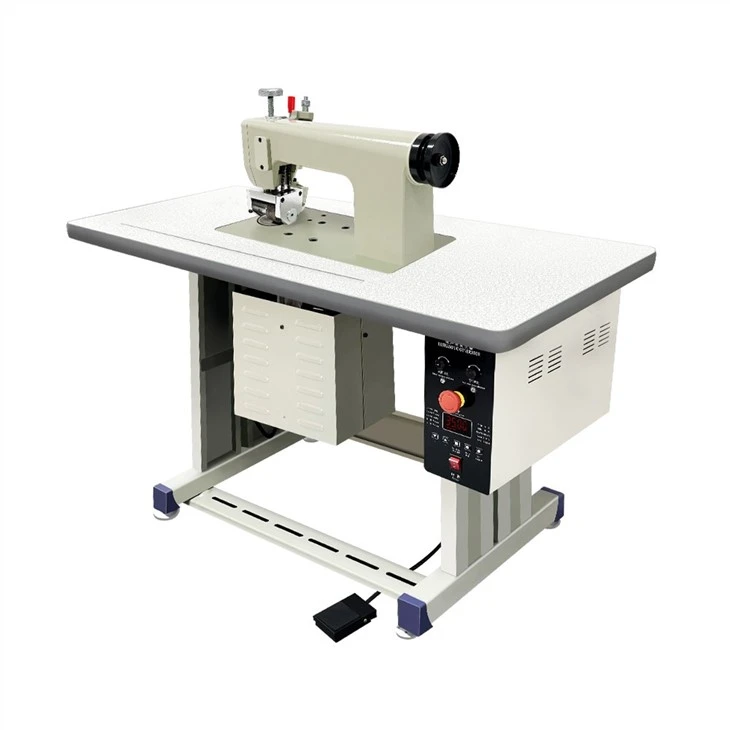

Ultrasonic Fabric Melting Tshuab
X30 yog phau ntawv muaj zog ultrasonic lace tshuab. Cov khoom tseem ceeb uas tsim los ntawm ib qho kev txawj ntse nrhiav ultrasonic generator, high-Q transducer, thiab cov cuab yeej hnav-tiv taus lub taub hau muaj kev ua tau zoo thaum siv hauv kev txiav, vuam, thiab stitching. Dual-motor tsav system, adjustable ceev, tsis siv neeg zaus mus txog qhovtwg ultrasonic generator tsav, phau ntawv ceev hloov, ntau yam xaiv ntawm paj log thiab txawv txav lub tswb muaj nuj nqi ....
Cov yam ntxwv tseem ceebntawmUltrasonic Fabric Melting Tshuab
1. Txais piezoelectric chips, nrog cov zis muaj zog thiab ruaj khov;
2. Cov khoom siv tshwj xeeb alloy steel yog siv los ua paj log, thiab lub taub hau vuam yog hnav-tiv taus thiab muaj lub neej ua haujlwm ntev.
3. Ib qho yooj yim disassembly thiab sib dhos ntawm paj pwm, eccentric core hloov, yooj, ceev, thiab qib siab;
4. Kev ua haujlwm ceev ceev thiab cov khoom zoo
5. Ua kom tiav cov khoom sib dhos nrog kev ua haujlwm ruaj khov
Muaj nuj nqi piav qhia ntawm Ultrasonic Lacing Tshuab Precision thiab du Ultrasonic xaws thiab ntug nias tshuab Tsis woven Fabric Thaum tshav kub kub sealing tshuab:
1. Siv ultrasound thiab tshwj xeeb steel log rau kev ua, tsis muaj kev puas tsuaj ntawm cov npoo los yog burrs.
2. Lub paj log hloov yog yooj yim, thiab ntau yam duab paj log tuaj yeem hloov tau raws li cov neeg siv khoom xav tau.
3. Tsis tas yuav tsum tau preheating thaum lub sij hawm tsim thiab ua haujlwm tas mus li.
4. Kev xaws: Siv ultrasound ncaj qha rau sew ntau yam ntaub yam tsis tas yuav tsum tau koob thiab xov, yog li ua tiav cov dej tsis zoo.
5. Lace: Ntau hom tawv / ntaub tuaj yeem nias rau hauv ib qho qauv siv ultrasound tsis siv burrs
6. Stamping: Ultrasound tuaj yeem siv rau stamping ntawm ntau hom tawv / ntaub, nrog ceev ceev thiab ua tau zoo
7. Ntug wrapping: Ultrasonic tsis tuaj yeem siv los qhwv ntau hom tawv / ntaub
8. Lwm yam: Lub tshuab no kuj muaj cov haujlwm xws li slitting / qhov txiav, uas tuaj yeem ua tiav cov txiaj ntsig ntawm ntau yam kev siv rau ib lub tshuab
Parameters ntawm Ultrasonic Fabric Melting Tshuab
| Qauv | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic zaus | 20 KHz | 20 KHz | 20 KHz |
| Ultrasonic zog | Tsawg dua lossis sib npaug li 2600W | Tsawg dua lossis sib npaug li 2600W | Tsawg dua lossis sib npaug li 2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic boosters | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Lub cev muaj zog | Ib leeg / asynchronous lub cev muaj zog 60W 0.8A 110V 60Hz | Ib leeg / asynchronous lub cev muaj zog 60W 0.8A 110V 60Hz | Ib leeg / asynchronous lub cev muaj zog 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Txoj kev ua haujlwm | sab nraud | built-in | built-in |
| Qhov dav dav | Tsawg dua los yog sib npaug li 16 hli | Tsawg dua los yog sib npaug li 100mm | Tsawg dua los yog sib npaug li 210mm |
| Paj log txoj kab uas hla | 50 hli | 50 hli | 50 hli |
| Max ceev | 20m / min | 20m / min | 20m / min |
| Chaw ua haujlwm | 370mm * 155 hli | 370mm * 155 hli | 370mm * 155 hli |
| Tshuab lub cev loj | 500mm * 125mm * 265mm | 500mm * 125mm * 265mm | 500mm * 125mm * 265mm |
| Tag nrho lub tshuab loj | 1210 * 600mm * 1100mm | 1210 * 600mm * 1101 hli | 1210 * 600mm * 1101 hli |
| Fais fab mov | 220v ± 10% 50-60Hz | 220v ± 10% 50-60Hz | 220v ± 10% 50-60Hz |
| Cov txheej txheem pob | Export ntoo rooj plaub | Export ntoo rooj plaub | Export ntoo rooj plaub |
| Pob loj | 1250mm * 600mm * 1080mm | 1250mm * 600mm * 1080mm | 1250mm * 600mm * 1080mm |
| Qhov hnyav | 88.5 KWG | 88.5 KWG | 88.5 KWG |
Nta
1. Nws yog tsim rau rab koob tsis muaj suture ntawm cov tshuaj fiber ntau daim ntaub, kub yaj daim ntaub, tsis-woven phais khaub ncaws thiab lwm yam khoom siv kho mob, nrog zoo nkauj tsos thiab ua hauj lwm efficiency.
2. Kev khiav ceev yog ceev, mus txog 20m / min, thiab ceev ceev kuj tuaj yeem hloov kho.
3. Ultrasonic fabric melting tshuab muaj cov qauv yooj yim thiab yooj yim rau cov neeg ua haujlwm ua haujlwm.
Daim ntawv thov
Non-woven surgical khaub ncaws, lwm yam khoom siv kho mob uas tsis yog-woven pov tseg.
Cov neeg tsim khoom ntawm cov khaub ncaws npaj txhij, txaj, ntaub cov khoom ua si, tawv, tawv tawv, jacquard ntaub, tshuaj fiber ntau fabrics, thiab lwm yam.
Scope ntawm daim ntawv thov: khaub ncaws, accessories series, Christmas accessories, txaj, tsheb npog, tsis-woven fabrics, tawv, lace, pajamas, ris tsho hauv qab, pillowcases, quilt covers, skirts, hairpins, hairpins, fabric laces, chaw welding ntawm tsab xov xwm laces.
FAQ
Q: Lub sijhawm khoom xa tuaj yog dab tsi?
A: Cov qauv xaj lossis xaj me me feem ntau yog 1-3 hnub, thiab cov xaj loj lossis cov thawv xaj feem ntau yog 5-10 hnub.
Q: Tus nqi puas suav nrog se?
A: Tus nqi hauv online tsis suav nrog se, thiab tus nqi thauj khoom tsis suav nrog rau cov khoom loj.
Q: Yuav ua li cas thiaj txiav txim lub tshuab?
A: Tus thawj cov menyuam yog lub tshuab xaws nrog rau 3- cov kab ntawv taw qhia. Yog tias tsis muaj tus qauv customized, koj tuaj yeem xaj nws ncaj qha. Yog tias koj xav tau hloov kho, peb yuav kho nws rau koj.
Q: Kuv puas tuaj yeem muab kuv lub logo / hom rau ntawm Ultrasonic Fabric Melting Tshuab?
A: Tau kawg koj tuaj yeem ua tau. Thov xa koj cov cai rau peb los ntawm kev xa ntawv. Peb yuav sib txuas lus thiab koom tes nrog koj sai li sai tau.
Q: Koj puas txais cov qauv tsim tshwj xeeb?
A: Yog lawm, peb lees txais kev tsim thiab tsim cov khoom raws li cov neeg siv khoom tshwj xeeb.
Q: Cov khoom no puas muaj daim ntawv pov thawj xav tau los ntawm peb lub teb chaws?
A: Thov qhia peb txog koj cov kev xav tau. Peb cov ntawv pov thawj muaj feem ua tiav. Yog tias tsis muaj, peb yuav tau txais daim ntawv pov thawj koj xav tau sai li sai tau.
Yog xav paub ntxiv ntawm Ultrasonic Fabric Melting Tshuab, thov koj xav tiv tauj peb!
