Mobile Charger Ultrasonic Vuam Tshuab
Ultrasonic systems ntawm mobile charger ultrasonic vuam tshuab tso cai rau welding ntug ntawm ntaub nyob rau hauv ib qho kev lag luam! peb cov thev naus laus zis yog ua raws li lub hauv paus ntsiab lus piezoelectric, los hloov cov teeb liab hluav taws xob hauv kev vibration.
Khoom taw qhia

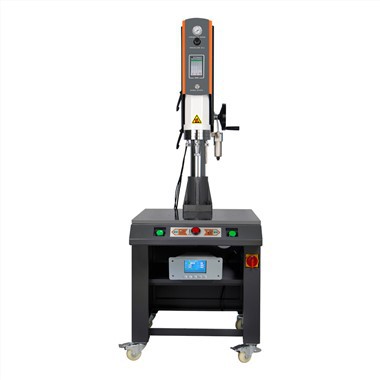

Peb muab mobile charger ultrasonic vuam tshuab.
1. Ultrasonic systems ntawm mobile charger ultrasonic vuam tshuab tso cai rau welding ntug ntawm ntaub nyob rau hauv ib qho kev lag luam! Peb cov thev naus laus zis yog ua raws li lub hauv paus ntsiab lus piezoelectric, los hloov cov teeb liab hluav taws xob hauv kev vibration.
2. Cov oscillations no yuav amplified los ntawm lub koob thiab converter, yog li tsim ib tug rauj. Lub converter converts hluav taws xob mus rau hauv high zaus mechanical vibration. Cov ntsiab lus nquag yog piezoelectrics ceramics. Lub booster (yeem) ua hauj lwm raws li ib tug amplitude transformer.Amplitude magnification los yog txo yog tiav los ntawm tej yam tsim nta los yog cov duab geometrical ntawm lub koob.
3. Lub sonotrode, los yog horn, yog ib feem ntawm lub ultrasonicunit. Nws yog nyob rau hauv kev sib cuag nrog cov ntaub thiab ua raws li ib tug rauj tiv thaiv lub counter-tool. Cov txheej txheem no yuav ua rau kom yaj cov fibers hauv cov ntaub los ntawm kev ua haujlwm (rauj), ua kom tau txais qhov huv thiab hloov tau yooj yim yaj yam tsis muaj kev kub hnyiab lossis xim hloov. Lub sonotrode thiab counter-tool tsim yuav raug yoog raws li kev ua haujlwm yuav tsum tau ua.
4. Qhov zoo ntawm mobile charger ultrasonic vuam tshuab: tau zoo repeatability, ceev ceev txias thiab zoo sealing; cov zaus muaj xws li 15KHz, 20kHz, 30kHz thiab 40KHz, uas tsim nyog rau kev ua haujlwm ntawm txhua qhov loj, los ntawm cov khoom siv hluav taws xob tsawg tshaj plaws mus rau cov cuab yeej loj hauv kev lag luam tsheb; pob qij txha yuav tsum du thiab huv si; txuag nyiaj, ceev kom qhuav lub sij hawm thiab tsawg raw khoom; tsis muaj qhov sib cais los yog lwm yam fasteners, tsis tas yuav tsum tau kov.
Khoom Parameter
Cov khoom | H40 series | ||||||||
ua hauj lwm zaus | 15 KHz | 15 KHz | 15 KHz | 20 KHz | 20 KHz | 28 KHz | 30 KHz | 35 KHz | 40 KHz |
Lub zog ua haujlwm | 4200W | 3200W | 2600W | 3000W | 2500W | 1200W | 1200W | 1200W | 800W |
Ua hauj lwm voltage / gas qhov chaw | 220V ± 10 feem pua / 0.2-0.7Mpa | ||||||||
Vuam stroke | 100MM | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib | 75MM ib |
Dimensions mm | 750*900*1900 | 650*750*1880 | 390*630*1050 | 650*750*1880 | 390*630*1050 | ||||
Net nyhav | Tsawg dua lossis sib npaug li 260KG | Tsawg dua los yog sib npaug li 150KG | Tsawg dua lossis sib npaug li 85KG | Tsawg dua los yog sib npaug li 150KG | Tsawg dua lossis sib npaug li 85KG | ||||
Kev ua haujlwm interface | 4.3 nti kov npo | ||||||||
Khoom feature thiab daim ntawv thov
● Txais ST nti kom ruaj khov ultrasonic tso zis amplitude;
● Kev tiv thaiv hluav taws xob ntawm transistor yog 1600V, nrog kev ua haujlwm zoo thiab tsis ua haujlwm tsawg.
● Tus tsim bandwidth tuaj yeem ncav cuag 1000H nrog kev ua haujlwm siab ib puag ncig;
● Pneumatic Cheebtsam tau txais yuav cov khoom qub AIRTAC uas ua kom qhov qis qis dua;
● Tag nrho cov kev khiav hauj lwm vaj huam sib luag thiab Rev. nres qhov chaw yog tsim nyob rau hauv yam tsawg kawg nkaus 500, 000 zaug, los xyuas kom meej lub tshuab khiav mus ntev.
FAQ
Q: Thaum lub tshuab hluav taws xob xa tawm lub tswb ntau dhau, kos raws li hauv qab no:
1. Qee zaum qhov kev kuaj tsis muaj load yog qhov qub, tab sis nws tsis tuaj yeem ua haujlwm li qub. Tej zaum nws yuav yog qhov kev hloov pauv sab hauv ntawm lub vuam taub hau thiab lwm yam khoom siv lub zog ua rau lub suab tsis zoo ntawm lub zog xa mus. Ntawm no yog ib txoj kev txiav txim yooj yim: tes kov txoj kev. Lub amplitude ntawm ib txwm ua hauj lwm vuam taub hau los yog hornsurface yog heev uniform, thiab txhais tes zoo nkaus li du zoo li velvet. Thaum lub suab lub zog xa mus tsis zoo, yuav muaj npuas lossis burr. Lub sijhawm no, txoj kev tshem tawm yuav tsum tau siv los tshem tawm qhov tsis xws luag. Thaum lub tshuab hluav taws xob txawv txav, tib qhov xwm txheej tuaj yeem tsim tau. Lub input waveform ntawm lub transducer yuav tsum du sine yoj. Qhov no tshwm sim kuj tshwm sim thaum muaj spikes los yog txawv txav waveforms ntawm sine yoj. Nyob rau hauv cov ntaub ntawv no, lwm tag nrho cov ceg acoustic zog lub sij hawm yuav siv tau kom paub qhov txawv.
2. Ultrasonic tsis-load kuaj, yog tias qhov ua haujlwm tam sim no zoo li qub, nws yuav yog tias ultrasonic vuam lub taub hau tiv tauj cov khoom uas yuav tsum tsis txhob tiv tauj lossis qhov ntsuas kev hloov pauv ntawm ultrasonic vuam taub hau thiab vuam puag yog faulty.
3. Thaum kuaj ultrasonic tsis muaj load yog txawv txav, thawj zaug saib seb puas muaj cov kab nrib pleb hauv ultrasonic pwm thiab lub installation yog ruaj. Tom qab ntawd tshem tawm lub vuam taub hau thiab tom qab ntawd ua qhov kev ntsuas tsis muaj kev thauj khoom kom tsis suav nrog seb puas muaj teeb meem nrog lub tshuab hluav taws xob ultrasonic ntxiv rau lub tshuab hluav taws xob, thiab tshem tawm cov kauj ruam los ntawm kauj ruam. Tom qab tshem tawm qhov muaj peev xwm ntawm transducer ntxiv rau lub horn tsis ua haujlwm, lub tshuab vuam tshiab yuav tsum tau hloov los txiav txim.
Ultrasonic teeb meem 2: txawv txav cua sov ntawm ultrasonic pwm
