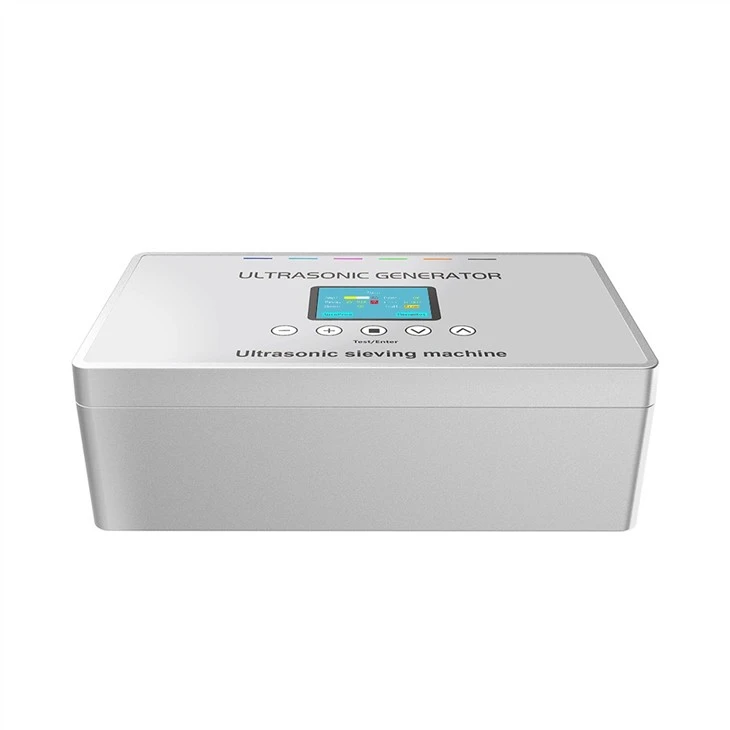

Generator Rau Ultrasonic Sieving
MAR series yog ib qho kev kuaj xyuas ultrasonic, uas yog tsim los ntawm ultrasonic generator thiab tshuaj ntsuam transducer. Nws tuaj yeem ua tau raws li kev siv ntau ntawm 28 ~ 38kHz zaus. Lub kaw lus tuaj yeem tuaj yeem taug qab qhov zoo tshaj plaws resonant zaus thiab them nyiaj rau qhov detuning los ntawm cua sov thiab lwm yam laj thawj; Nws tseem tuaj yeem muab ntxiv rau ib qho tshiab lossis uas twb muaj lawm vibrating npo; Lub amplitude ntau yam ntawm Mar series ultrasonic tshuaj ntsuam xyuas qhov system txuas ntxiv kho tau los ntawm 20% mus rau 100%, uas txawv ntawm qhov tsis zoo ntawm cov tshuab hluav taws xob ib txwm siv uas nyuaj rau kev ua haujlwm nrog tsawg amplitude. Nws tuaj yeem tshem tau yooj yim agglomerated thiab viscous hmoov los ntawm qhov screen saum npoo, ua rau kom muaj peev xwm soj ntsuam, txhim kho cov hmoov tshuaj ntsuam xyuas, thiab txo qhov kev tshuaj ntsuam mesh mus rau 20 microns (635 mesh) .....
Jiayuanda generator rau ultrasonic sieving yog ib feem ntawm MAR ultrasonic tshuaj ntsuam series. Nws sawv tawm rau nws qhov kev teeb tsa yooj yim thiab kev ua haujlwm siab, thiab nws kuj tsim nyog rau ntau yam kev siv. Nrog optimized presets, kev txhim kho cov khoom tsim tau txog li 1-70% tuaj yeem ua tiav. JYD-2900EM Generator Rau Ultrasonic Sieving tuaj yeem pom qhov zoo tshaj plaws resonance taw tes, thiab qhov no ultrasonic sieve system uas yuav tsum tsis muaj kev ntxuav, thiab nws muaj zog heev, uas tsis tas siv nyiaj ntau.
Lub Jiayuanda ultrasonic deblinding system muaj peev xwm soj ntsuam ntau yam ntawm cov hmoov nrog cov kev ntsuas sib txawv uas tsis muaj clogging lub apertures. Nws tuaj yeem txhim kho cov khoom zoo kawg nkaus thiab ua kom muaj peev xwm tshuaj ntsuam xyuas.
Nws kuj tseem txuas ntxiv lub neej kev pab cuam ntawm lub vijtsam mesh vim tias cov neeg ua haujlwm tsis tas yuav tsum muaj kev sib cais thiab ntxuav lub vijtsam. Peb cov tshuab ultrasonic tuaj yeem ntsia tau rau hauv cov ntxaij vab tshaus vibrating tshiab thiab tam sim no thiab cov tshuab tshuaj ntsuam xyuas. Nws optimized kev koom ua ke muab koj nrog qhov zoo tshaj plaws kev tshuaj ntsuam tshuaj.
Cov yam ntxwv tseem ceeb:
1. Ultrasonic deblinding cov ntxaij vab tshaus muab kev tshuaj ntsuam xyuas meej thiab txhim khu kev qha, ua kom pom kev sib cais ua haujlwm tsis hais cov hmoov loj lossis muaj pes tsawg leeg.
2. Ultrasonic lub zog tshem tawm cov khoom, agglomerates thiab lwm yam kab mob los ntawm lub vijtsam nto, ua kom cov hmoov ruaj khov thiab txo qis sijhawm.
3. Ua kom muaj zog ntxiv, txhim kho kev tshuaj ntsuam xyuas qhov tseeb thiab kev tsim khoom ntau ntxiv uas ua rau cov ntxaij vab tshaus ultrasonic los ua ib qho cuab yeej tseem ceeb rau kev pom cov hmoov tshuaj ntsuam xyuas kev ua tau zoo
4. Ultrasonic deblinding systems muab ib tug tag nrho automated tov rau mesh blinding, uas ua rau kom productivity thaum tiv thaiv mesh puas.
5. Ultrasonic vibrating npo yog hom mature heev ntawm lub tshuab siv nyob rau hauv kev tshuaj ntsuam kev lag luam. Nws yog lub tshuab vibrating zoo tagnrho rau kev tshuaj xyuas cov hmoov zoo thiab qee cov ntaub ntawv zoo.
Specification ntawm Generator Rau Ultrasonic Sieving
| Cov khoom naj npawb | MAR28-D55 | Peb 28S-D58 | MAR 28-D74 | Peb 35S-D58 | MAR 35-D58 |
| Ultrasonic zaus | 25.5 ~ 29.5KHz | 25.5 ~ 29.5KHz | 25.5 ~ 28KHz | 33 ~ 39KHz | 33 ~ 39KHz |
| Ultrasonic zog | Tsawg dua lossis sib npaug li 60W | Tsawg dua los yog sib npaug rau 100W | Tsawg dua los yog sib npaug rau 100W | Tsawg dua los yog sib npaug rau 100W | Tsawg dua los yog sib npaug rau 100W |
| Generator Rau Ultrasonic Sieving | JYD-2900EM | ||||
| Cov txheej txheem pom | 3.2-inch zaub | ||||
| Ultrasonic Transducer | JYD-3828-4P8-SE-D55 | JYD-3828-4P8-TR-D58 | JYD-5028-4P8-SMFI | JYD-3035-4P8-TMVF-D55 | JYD-3835-4P8-SR-D58 |
| Tsau txoj kev | Sab nraud | Sab nraud | built-in | Sab nraud | built-in |
| Generator loj | 280mm * 170mm * 90mm | 280mm * 170mm * 90mm | 280mm * 170mm * 90mm | 280mm * 170mm * 90mm | 280mm * 170mm * 90mm |
| Generator + transducer los ua ke loj | 415x355x1750mm | 415x355x1750mm | 450 x 420 x 175 mm | 415 x 355 x 175 mm | 450 x 420 x 175 mm |
| Ua haujlwm fais fab | 220V ± 10% 50-60Hz | ||||
FAQ:
Q:Dab tsi yog qhov txawv ntawm kev tshuaj ntsuam ultrasonic thiab kev tshuaj ntsuam zoo tib yam?
Qhov txawv ntawm ultrasonic vibrating cov ntxaij vab tshaus thiab cov ntxaij vab tshaus vibrating zoo tib yam yog tias cov ntxaij vab tshaus ultrasonic vibrating superimpose yoj lub zog rau ntawm qhov screen los ntxuav lub vijtsam mesh thiab cov ntaub ntawv tshuaj ntsuam zoo dua. Thaum cov cuab yeej tshuaj ntsuam xyuas ua haujlwm, nws tsuas yog tso siab rau cov nthwv dej siab uas tsim los ntawm ultrasonic transducer kom xa mus rau ntawm qhov screen.
Thaum lub sijhawm ua haujlwm ntawm lub vijtsam, cov khoom siv hmoov yuav nkag mus rau sab hauv ntawm ultrasonic transducer, ua rau lub transducer hlawv tawm. Qhov no yog ib qho kev ua tsis tiav ntawm cov ntxaij vab tshaus vibrating. Yog li ntawd, cov neeg siv yuav tsum tau tswj cov khoom siv tom qab siv nws rau ib lub sijhawm, xyuas seb lub transducer puas xoob, thiab ceev kom zoo dua los tiv thaiv cov khoom tseem ceeb ntawm cov khoom.
Lwm qhov yog tias qhov ntsaws ib feem ntawm lub vijtsam ultrasonic vibrating yog yooj yim rau loosen, uas yog lwm qhov ua rau cov khoom siv tsis ua haujlwm. Ntawm qhov tod tes, vim muaj kev vibration siab ntawm lub fuselage, aviation plugs yog qhov yooj yim rau loosening thiab ntog tawm thaum lub sij hawm siv khoom, ua rau cov khoom kaw. Yog li ntawd, thaum ntsib qhov teeb meem no, thaum daws teeb meem, cov neeg siv yuav tsum xub xyuas seb lub tshuab hluav taws xob ultrasonic vibrating lub zog ua haujlwm li cas. Tsis tas li ntawd, lawv yuav tsum xyuas seb cov kab hluav taws xob tso tawm puas xoob thiab txuas cov kab hauv lub sijhawm.
Q: Cov lus qhia cov lus qhia ntawm ultrasonic tshuaj ntsuam system
1. Ua ntej, xauv lub transducer ntawm daim phiaj nrog lub vijtsam mesh txuas (lub zog xauv yog 40 ~ 50kg), thiab tom qab ntawd nruab cov kab sib chaws ultrasonic rau hauv lub vibrating npo.
2. Lub hwj chim mov ntawm ultrasonic vibrating npo thiab teb vibrating npo yog sib cais. Lub teb vibrating npo muab peb-theem fais fab mov, thaum lub ultrasonic vibrating screen fais fab mov yog ib-theem fais fab mov. Ob leeg yuav tsum muaj kev ntseeg siab hauv av.
3. Lub OUT nyob rau hauv lub rear vaj huam sib luag ntawm lub ultrasonic vibrating screen fais fab mov yog lub ultrasonic tso zis. Thov ntxig thiab kaw lub ultrasonic high-frequency kev twb kev txuas cable, thiab xyuas seb qhov kev twb kev txuas yog txhim khu kev qha. Txuas rau lwm qhov kawg ntawm lub aviation plug ntawm high-frequency txuas cable mus rau lub transducer thiab xyuas kom meej tias lub foob yog ruaj ruaj.
4. Txuas lub tshuab hluav taws xob rau ultrasonic sieving thiab ultrasonic high-frequency txuas kab. Tom qab kuaj xyuas tias txhua yam yog lawm, qhib lub tshuab hluav taws xob ultrasonic. Nrog lub suab "beep", lub hwj chim ntawm lub vijtsam vibrating ultrasonic yog qhib, thiab lub qhov rais zaub qhia "Vibration Amplitude XXXμm", nkag mus rau lub xeev ntsuas tus kheej. Los ntawm kev kho qhov amplitude pob qhov rooj, qhov kev vibration amplitude tuaj yeem hloov kho (qhov pom zoo kev vibration amplitude yog 100 ~ 150μm, uas muaj txiaj ntsig zoo rau lub neej ntawm lub vijtsam).
5. Lub ultrasonic resonance vibration fais fab mov muaj ob lub xeev ua hauj lwm: nruam ua hauj lwm lub xeev thiab mem tes ua hauj lwm xeev.
