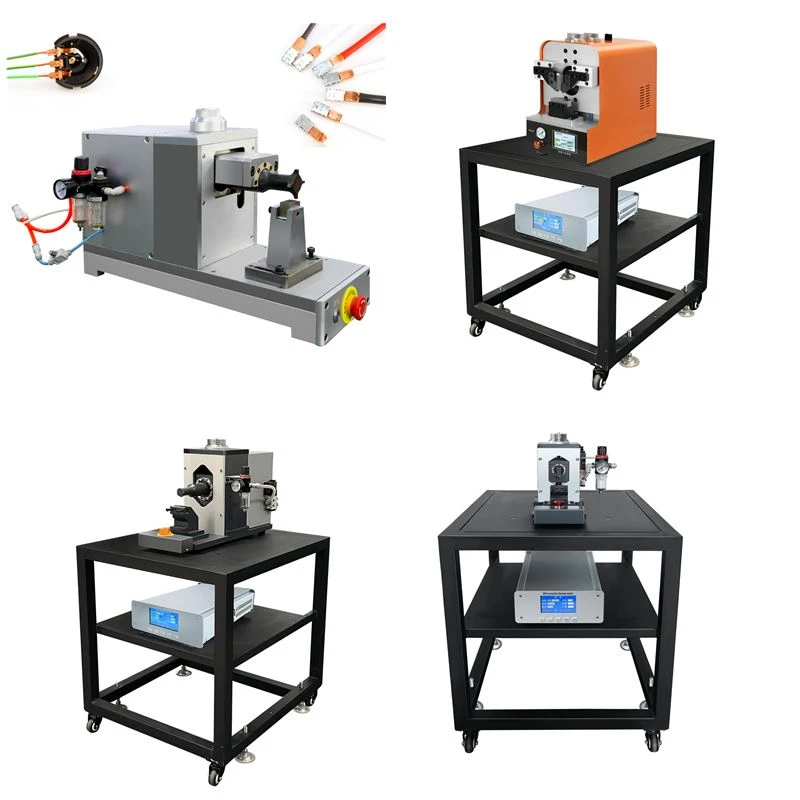

Ultrasonic Cov Roj Teeb Pob Pob Pob Ntawv Pob
Ua haujlwm ua haujlwm ntawm ultrasonic pob ntawv pob ntawv vuam ultrasonic hlau vuam siv lub zog ua hluav taws xob lub zog los ntawm transducer los ua ntawm cov hlau hlau hlau.
Lub roj teeb ultrasonic pob worder yog tsim ntawm ob ntu: lub tshuab thiab lub zog ultrasonic.
-
Lub tshuab yog tsim ntawm lub chassis, cov lus qhia kev qhia, ib qho kev hloov pauv, lub tshuab pneumatic, lub PC Circuit, thiab hauv qab pwm.
-
Acoustic tivthaiv: acoustic tivthaiv yog tsim los ntawm transducer thiab vuam taub. Lub transducer adopts Piezoeltric Vibrator, uas nws muaj txoj haujlwm yog hloov kho hluav taws xob kev co. Lub converter yog ib qho piv rau cov hloov pauv hauv Circuitfere hauv Circuitfer, uas ua si lub luag haujlwm ntawm cov neeg kho tshuab dampic kev hloov siab. Lub Taub Hau Vuam yog tsim raws li kev xav tau vuam yuav tsum muaj thiab cov duab ntawm cov weldment. Nws tseem ua lub luag haujlwm ntawm theem nrab impedance hloov pauv thiab amplitation dhipification. Nyob rau hauv cov nqe lus ntawm cov qauv thiab cov duab, lub taub hau vuam tsis nyuaj, tab sis nws xav tau cov ntaub ntawv zoo tshaj plaws, cov ntaub ntawv zoo tshaj plaws thiab kev ua haujlwm zoo thiab ua tau zoo thiab ua haujlwm zoo. Vuam hau nrog cov duab nyuaj thiab qhov loj me yog qhov nyuaj rau kev tsim qauv, thiab lawv feem ntau tsim los ntawm cov tuam ntxhab.
-
Cua Siab Txheej Txheem: Lub Siab Cua Siab Txheej Txheem yog Powered los ntawm cov cua compressed, dhau ntawm solenoD lub zog hloov mus rau lub taub hau vuam lub taub hau kom txav mus nce thiab nqis. Lub siab tswj hwm valve yog siv los tswj cov huab cua siab, thiab ib-txoj kev throttle valve yog siv los tswj lub sijhawm khiav ceev.
Tsis
| Qauv Khoom Qauv | L40-P800 | L20-P2000 | L20-P4500 |
| Kev pab fais fab | Ib theem AC220V \/ AC110V hloov 50Hz | Ib theem AC220V \/ AC110V hloov 50Hz | Ib theem AC220V \/ AC110V hloov 50Hz |
| Cua Xa Khoom | Compressed cua 0. {5-0. 8mpa | Compressed cua 0. {5-0. 8mpa | Compressed cua 0. {5-0. 8mpa |
| Ultrasonic Peak Power (w) | 500 | 1200 | 2600 |
| Siab tshaj plaws ntawm lub tshuab (w) | 600 | 1500 | 2800 |
| Ultrasonic zaus (KHz) | 40 | 20 | 20 |
| Ntau kawg ultrasound time (s) | 0.4s | 0.4s | 0.4s |
| Kho tau qhov tseeb ntawm ultrasound lub sijhawm (s) | 0.01s | 0.01s | 0.01s |
| Ultrasonic Pwm Txuas Xov Loj | M8*1.25 | 1\/2 * 20unf | 1\/2 * 20unf |
| Cov ntaub ntawv tso zis | Tuaj yeem xa tawm txhua cov ntaub ntawv vuam los ntawm sab nraud USB tsav sab nraud | Tuaj yeem xa tawm txhua cov ntaub ntawv vuam los ntawm sab nraud USB tsav sab nraud | Tuaj yeem xa tawm txhua cov ntaub ntawv vuam los ntawm sab nraud USB tsav sab nraud |
| Lub pwm sab qaum loj (hli) | 4×4 | 4×4 8×4 | 12×4 8×4 |
| Hauv qab cov pwm loj | 20 × 20 disassemble cov disassble thiab hloov tau | 20 × 20 disassemble cov disassble thiab hloov tau | 20 × 20 disassemble cov disassble thiab hloov tau |
| Tus naj npawb siab tshaj plaws ntawm vuam txheej | 20 txheej ntawm tooj liab ntawv ci (tsis zoo electrode) 20 txheej ntawm txhuas ntawv ci (zoo electrode) | 30 txheej ntawm tooj liab ntawv ci (tsis zoo electrode) 30 txheej ntawm txhuas ntawv ci (zoo electrode) | 60 txheej ntawm tooj liab ntawv ci (tsis zoo electrode) 60 txheej ntawm txhuas ntawv ci (zoo electrode) |
Cov FAQ
Q: Vim li cas koj thiaj li xaiv cov roj teeb ultrasonic pob ntawv wildder?
A: 1, kev ntseeg siab siab: lub tshuab kom ntseeg tau cov txheej txheem zoo heev los ntawm lub sijhawm, lub zog, lub zog saib xyuas.
2, txuag tau nqi: nws zam kev consumables xws li solder, flux, bending cov ntaub ntawv thiab tooj dag cov ntaub ntawv, ua ultrasonic vuam cov txheej txheem zoo tshaj plaws.
3, Kev siv hluav taws xob tsawg: lub zog yuav tsum tau los ntawm ultrasonic vuam yog tsawg dua 1\/3 ntawm kev tiv thaiv vuam, tsis muaj preheating.
4, Tuam Lub Neej: Cov cuab yeej Ultrasonic tau ua los ntawm cov khoom lag luam zoo, nrog kev txhim kho zoo, yooj yim vuam, qhov siab sib dhos.
5, kev ua haujlwm siab thiab automation: Raug vuam ceev tsis ntau tshaj {}, tsawg dua kev xaiv rau cov kab sib dhos tsis siv neeg.
6, tsis muaj zog ua haujlwm kub: Vim tias Ultrasonic Vuam tsis ua rau muaj cua sov ntau, yog li nws yuav tsis ua rau cov yas ua haujlwm melting, kuj tseem tsis tau muaj dej txias.
7, ntxiv rau rwb thaiv tsev: feem ntau, cov nquag sib txhuam ntawm cov neeg siv hlau rwb thaiv tsev ntawm Enamelled hlau los yog ntxuav cov workpiece nto nyob ua ntej.
Cov Ntawv Thov
Ultrasonic lub roj teeb pob wilder yog tsim nyog rau: lub tsheb hlau ua hluav taws xob, tooj hluav taws xob, tooj liab log tsheb Tsheb Hlau Hlau Ua Si Hlau, Hlau Ua Hlau Hlau Hlau
