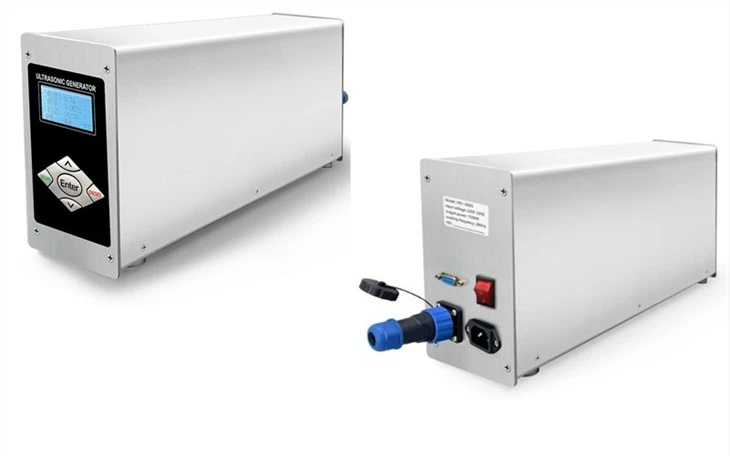

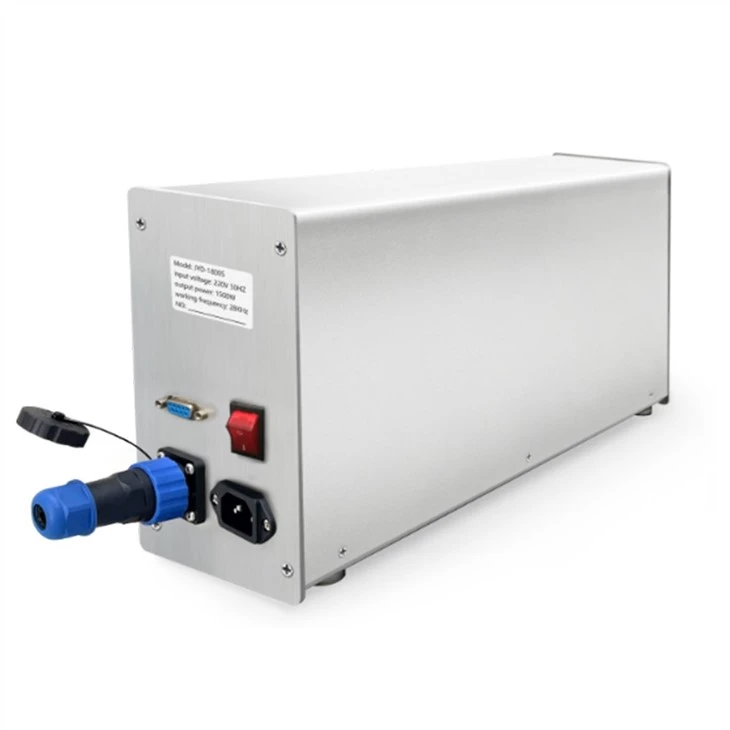

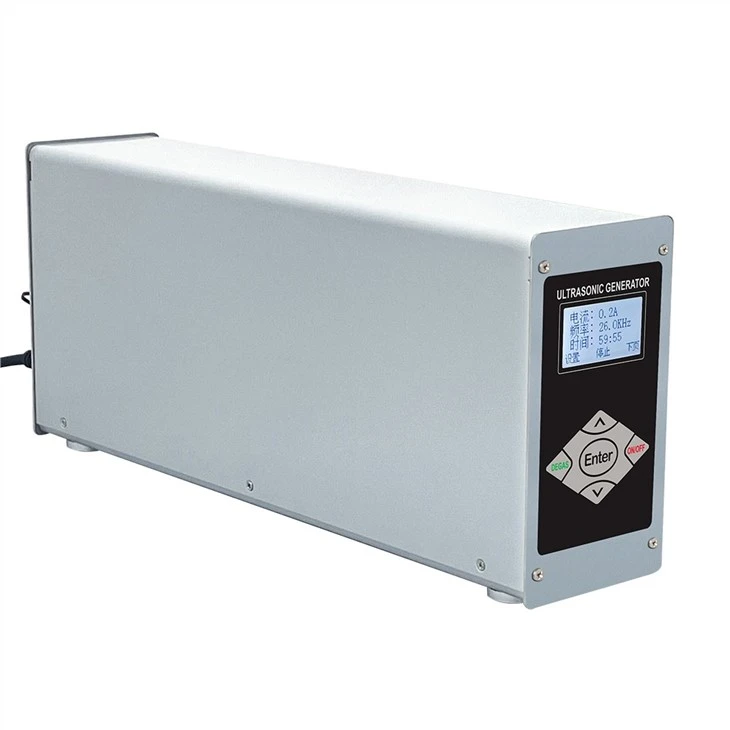

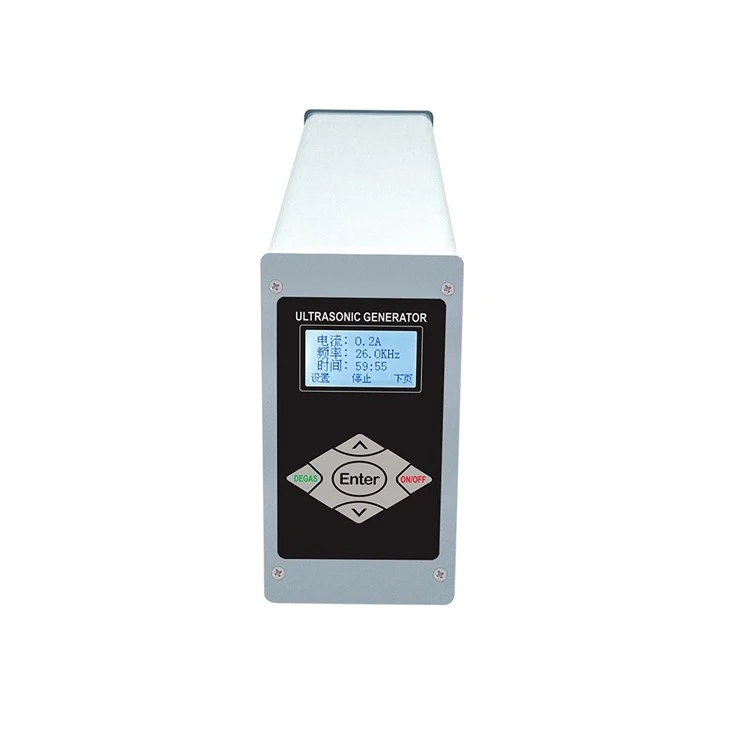

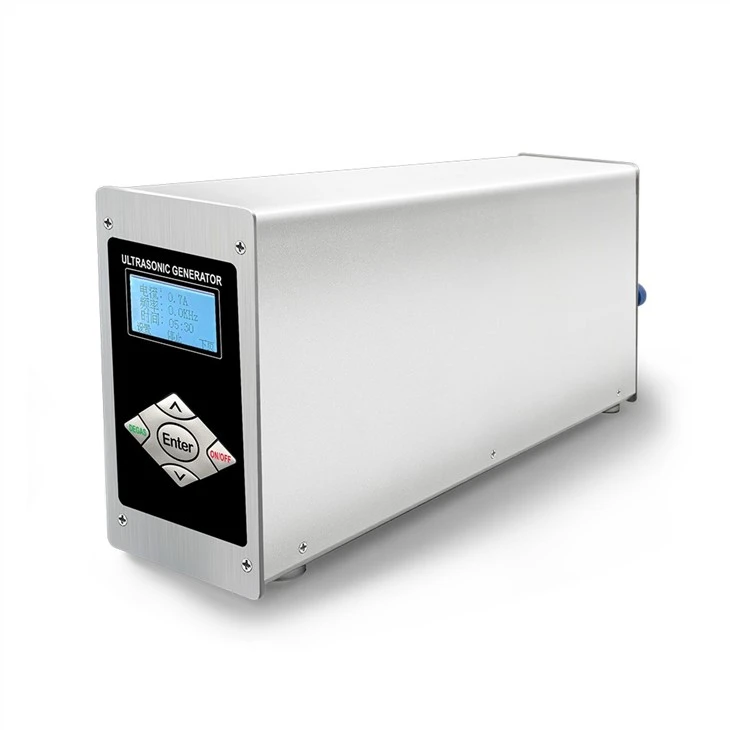

Ultrasonic Cleaning Power Source
Cov Khoom Muag Khoom Muag: JYD-1800S yog tus kheej tsim modular thiab ntse ultrasonic tu lub tshuab hluav taws xob, nrog ib qho tseem ceeb degassing, tsis siv neeg zaus taug qab, lub zog tsis tu ncua, kev saib xyuas tsis zoo, PLC tswj, RS485 tswj thiab lwm yam haujlwm, LCD zaub , tau...
Ultrasonic Cleaning Power Source
Product Description:
Taw qhia rau lub hwj chim maub los ntawm ultrasonic generator: lub hwj chim mov ntawm ultrasonic generator yog lub tsav tsheb rau ib txwm ua hauj lwm ntawm ultrasonic ntaus ntawv. Lub sijhawm ua haujlwm ruaj khov yog qhov tseem ceeb heev rau kev tu cov khoom. Yog li ntawd, tus qauv tsim thiab sab hauv ntawm ultrasonic generator fais fab mov yog qhov tseem ceeb heev. Kev ua tau zoo, Circuit Court board tsim thiab kev tiv thaiv yuav tsum tsis txhob muab pov tseg. Yog li ntawd, kev ua haujlwm ruaj khov, kev ua haujlwm yooj yim thiab cov qauv tsim nyog tau dhau los ua qhov kev xaiv zoo tshaj plaws rau cov neeg siv khoom.
Jyd-1800s yog tus kheej-tsim modular ntse ultrasonic tu generator. Nws muaj lub luag haujlwm ntawm ib qho tseem ceeb degassing, tsis siv neeg zaus taug qab, qhov tso zis tsis tu ncua, kev saib xyuas tsis zoo, PLC tswj, RS485 tswj, LCD zaub, kho kom haum, thiab lwm yam, uas tuaj yeem ua tau raws li kev tu kom huv ntawm cov ntawv thov sib txawv; Tau tshaj 20-40khz/50-68khz/80-100khz vibrating phaj; Jyd-1800s ultrasonic tu fais fab mov adopts ntsug tsim nyob rau hauv tsos, nrog me me ntim, lub teeb yuag, muaj zog ultrasonic tu nyhuv, tsis muaj suab nrov thiab ntev kev pab cuam lub neej.
Lub ntsiab nta:
☞ LCD zaub, tuaj yeem hloov kho;
☞ Lub tshuab hluav taws xob tsis siv neeg nrhiav lub tshuab hluav taws xob tuaj yeem taug qab qhov kev vibration zaus hauv lub sijhawm luv luv, uas yooj yim rau cov kws tshaj lij los daws qhov cuam tshuam ultrasonic;
☞ Kev tsim hluav taws xob tas li ua kom muaj qhov sib xws ntawm ultrasonic tu nyhuv;
☞ Ib qho tseem ceeb degassing muaj nuj nqi tuaj yeem txhim kho kev tu kom zoo kom ua tau raws li qhov sib txawv ntawm daim ntawv thov;
☞ Kev saib xyuas kev ua haujlwm tsis zoo, ua ke nrog kev tiv thaiv tam sim no, tiv thaiv qhov kub thiab txias, tsis tshua muaj suab nrov, lub tswb nrov tam sim no;
☞ PLC, RS485 tswj;
☞ Kev hloov pauv tam sim no thiab zaus tuaj yeem ua los ntawm cov yuam sij vaj huam sib luag;
☞ Lub tshuab hluav taws xob tu ultrasonic yog sib xws nrog 20-40KHz; 50-68KHz; 80-100KHz vibration phaj;
☞ Lub ntsej muag siv ntsug tsim, me me thiab lub teeb yuag.
Technical Parameter:
| Qauv | Tsav zog (max) | Tswj fais fab (%) | Ua haujlwm zaus (KHz) | Kev khiav hauj lwm voltage (V) | Maximum tso zis tam sim no (A) | ambient kub (degree) | Khoom hnyav (kg) | Qhov Loj (L / W / H: mm) |
| JYD-1800S | 600-2000W | 10-100 feem pua | 20-40 | 220V ± 10%. 50/60Hz | 7 | 0-40 | 5.5 | 430 * 96 * 180 hli |
| JYD-1800S-EG | 600-1500W | 10-100 feem pua | 50-68 | 5 | ||||
| JYD-1800SG | 600-1500W | 10-100 feem pua | 80-130 | 5 |
FAQ:
Ultrasonic Cleaning Fais Fab Qhov Chaw Tiv Thaiv Kev Siv
1. Txheeb xyuas seb qhov hluav taws xob hluav taws xob puas ua tau raws li qhov ntsuas hluav taws xob ntawm lub tshuab. Lub zog ua haujlwm ntawm ultrasonic fais fab mov feem ntau yog AC220V. Yog hais tias qhov tsis ncaj ncees lawm input voltage txuas, cov khoom siv yuav raug puas tsuaj thiab lub zog ultrasonic yuav tsis ua haujlwm ib txwm.
2. Ua tib zoo saib xyuas seb qhov zaus qhov tseem ceeb ntawm ultrasonic fais fab mov thiab lub vibrator zoo ib yam, yog li kom tsis txhob muaj kev puas tsuaj rau ultrasonic fais fab mov, vibrator lossis txawv txav debugging.
3. Nws yog nruj me ntsis txwv tsis pub qhib lub ultrasonic tsis muaj dej hauv lub tank dej kom tsis txhob muaj kev puas tsuaj rau lub zog ultrasonic lossis lub vibrator (transducer).
4. Thaum lub sij hawm debugging txheej txheem, ua tib zoo tig tawm lub hwj chim hloov los tiv thaiv hluav taws xob poob siab.
5. Thov muab lub zog ultrasonic tso rau hauv qhov chaw cua thiab qhuav.
6. Thaum txhim kho, qhov kev ncua deb ntawm sab laug, sab xis thiab sab nraub qaum ntawm cov khoom siv hluav taws xob ultrasonic yuav tsum siab dua 30cm kom yooj yim rau cua sov dissipation.
7. Thaum lub sij hawm kev teeb tsa, kev tiv thaiv hauv av xaim ntawm cov khoom siv hluav taws xob ultrasonic yuav tsum tau zoo hauv av kom tsis txhob muaj hluav taws xob poob.
8. Nws yog nruj me ntsis txwv tsis pub khiav lag luam ultrasonic fais fab mov nrog ob txhais tes ntub dej kom tsis txhob muaj hluav taws xob poob siab.
