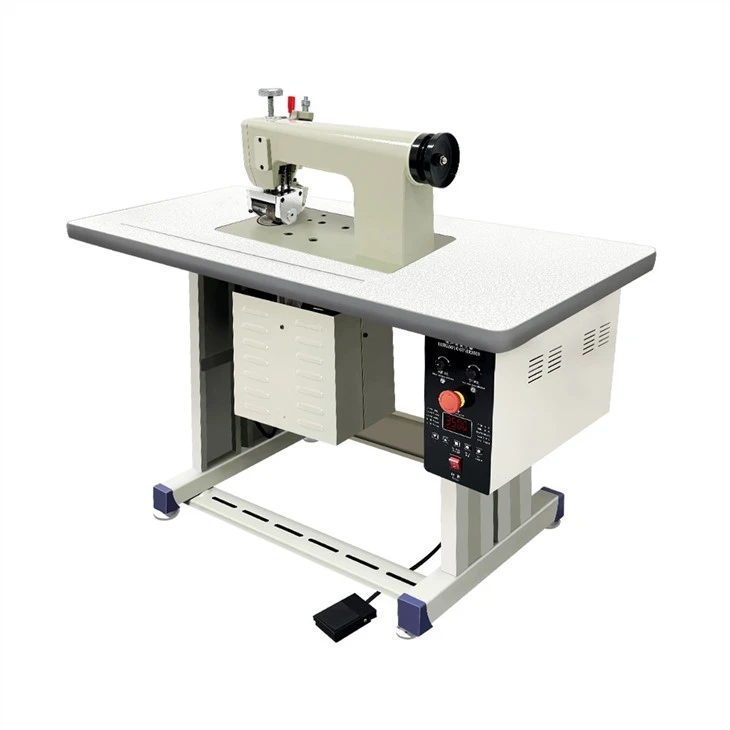

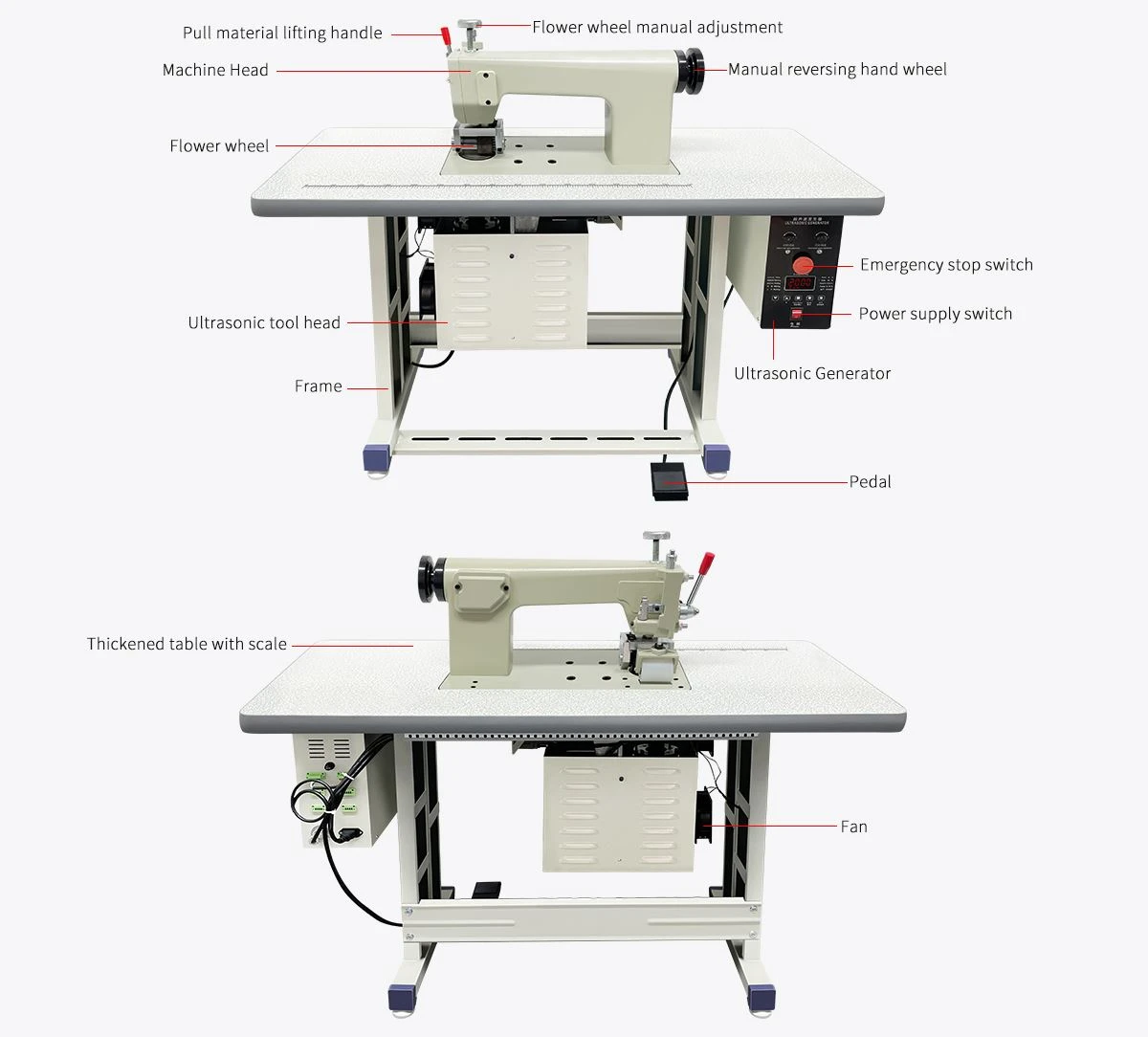

Ultrasonic Bra Ua Tshuab
X30 yog phau ntawv muaj zog ultrasonic lace tshuab. Cov khoom tseem ceeb uas tsim los ntawm ib qho kev txawj ntse nrhiav ultrasonic generator, high-Q transducer, thiab cov cuab yeej hnav-tiv taus lub taub hau muaj kev ua tau zoo thaum siv hauv kev txiav, vuam, thiab stitching. Dual-motor tsav system, adjustable ceev, tsis siv neeg zaus mus txog qhovtwg ultrasonic generator tsav, phau ntawv ceev hloov, ntau yam xaiv ntawm paj log thiab txawv txav lub tswb muaj nuj nqi ....
Cov qauv tsim ntawm ultrasonic bra ua tshuab muaj kev ua tau zoo, uas tuaj yeem tsis tsuas yog txhim kho kev tsim khoom thiab cov khoom zoo, tab sis kuj txo cov nqi tsim khoom ntawm cov khoom, kom lub lag luam tuaj yeem teb sai sai rau kev lag luam xav tau thiab txhim kho ntxiv. kev lag luam kev sib tw ntawm cov khoom lag luam thiab kev ua tiav lub zog ntawm kev lag luam. Ultrasonic bra lace tshuab yog siv rau cov ntaub tsis-woven, uas tuaj yeem txiav txiav, thiab lub hauv paus ntsiab lus ntawm ultrasonic vuam yog manually / pneumatically kho PLC tswj. Nws yog ib qho kev txuag hluav taws xob, kev ua haujlwm siab thiab ua haujlwm siab heev ultrasonic tsis-woven sewing khoom, uas muaj cov txiaj ntsig tseem ceeb thiab cov ntawv thov dav dav.
Parameters:
| Qauv | X30-D54 | X30-L110 | X30-L220 |
| Ultrasonic zaus | 20 KHz | 20 KHz | 20 KHz |
| Ultrasonic zog | Tsawg dua lossis sib npaug li 2600W | Tsawg dua lossis sib npaug li 2600W | Tsawg dua lossis sib npaug li 2600W |
| Ultrasonic generator | JYD-2900SP | JYD-2900SP | JYD-2900SP |
| Ultrasonic transducer | JYD-5020-6P8-AU | JYD-5020-6P8-AU | JYD-5020-6P8-AU |
| Ultrasonic boosters | S20-D54D38H129-H | S20-D54D38H129-H | S20-D54D38H129-H |
| Lub cev muaj zog | Ib leeg / asynchronous lub cev muaj zog 60W 0.8A 110V 60Hz | Ib leeg / asynchronous lub cev muaj zog 60W 0.8A 110V 60Hz | Ib leeg / asynchronous lub cev muaj zog 60W 0.8A 110V 60Hz |
| Reducer | / | / | / |
| Txoj kev ua haujlwm | sab nraud | built-in | built-in |
| Qhov dav dav | Tsawg dua los yog sib npaug li 16 hli | Tsawg dua los yog sib npaug li 100mm | Tsawg dua los yog sib npaug li 210mm |
| Paj log txoj kab uas hla | 50 hli | 50 hli | 50 hli |
| Max ceev | 20m / min | 20m / min | 20m / min |
| Chaw ua haujlwm | 370mm * 155 hli | 370mm * 155 hli | 370mm * 155 hli |
| Tshuab lub cev loj | 500mm * 125mm * 265mm | 500mm * 125mm * 265mm | 500mm * 125mm * 265mm |
| Tag nrho lub tshuab loj | 1210 * 600mm * 1100mm | 1210 * 600mm * 1101 hli | 1210 * 600mm * 1101 hli |
| Fais fab mov | 220v ± 10% 50-60Hz | 220v ± 10% 50-60Hz | 220v ± 10% 50-60Hz |
| Cov txheej txheem pob | Export ntoo rooj plaub | Export ntoo rooj plaub | Export ntoo rooj plaub |
| Pob loj | 1250mm * 600mm * 1080mm | 1250mm * 600mm * 1080mm | 1250mm * 600mm * 1080mm |
| Qhov hnyav | 88.5 KWG | 88.5 KWG | 88.5 KWG |
Daim ntawv thov:
Lub tshuab Ultrasonic Bra Ua Tshuab no tau siv dav hauv txhua yam khaub ncaws, tsev kho kom zoo nkauj, khoom siv tes ua, khoom ua si, thiab lwm yam. Nws yog tsim rau ntau yam ntaub, tawv tawv, tshuaj tsuag paj rwb, PE ntawv, PE + txhuas, PE + ntaub thiab lwm yam ntaub ntawv sib xyaw. , thermoplastic ntawv ci zaj duab xis thiab cov ntawv yas
FAQ:
Q:Yuav ua li cas Ultrasonic Bra Ua Tshuab zam cov khoom puas thaum lub sij hawm tsim khoom?
Teb: Nyob rau hauv cov txheej txheem ntau lawm, kom tsis txhob muaj cov khoom puas tsuaj, tshwj xeeb yuav tsum tau them rau cov ntsiab lus hauv qab no thaum khiav ultrasonic bra lace khoom. Ua ntej, nws yog ib qho tsim nyog los xyuas kom meej tias cov khoom raug muab tso rau hauv lub tiaj tus thiab tsis txhob muaj wrinkles los yog distortions, uas yuav pab tau kom lub fusion zoo. Thib ob, raws li lub thickness thiab hom ntawm cov khoom, kho lub zog ultrasonic thiab lub sij hawm kom tsim nyog kom tsis txhob muaj kev puas tsuaj rau cov khoom los ntawm lub zog ntau dhau los yog tsis txaus. Tsis tas li ntawd, kev tshuaj xyuas tsis tu ncua ntawm kev hnav ntawm lub paj log pwm thiab hloov raws sij hawm ntawm cov pwm hnyav hnyav kuj tseem ceeb rau kev tiv thaiv cov khoom puas. Los ntawm cov kev ntsuas no, nws muaj peev xwm txo tau cov khoom puas tsuaj thaum lub sij hawm tsim khoom thiab txhim kho tag nrho qhov zoo ntawm bra lace.
Q: Dab tsi yog kev saib xyuas ceev faj rau Ultrasonic Bra Ua Tshuab?
Teb: Kev saib xyuas ntawm ultrasonic bra lace cov cuab yeej yog qhov tseem ceeb rau kev tswj nws lub sijhawm ua haujlwm ruaj khov thiab txuas ntxiv nws lub neej kev pabcuam. Hais txog kev saib xyuas, cov ntsiab lus hauv qab no yuav tsum tau sau tseg. Ua ntej, tsis tu ncua ntxuav qhov chaw thiab sab hauv ntawm cov cuab yeej kom tsis txhob muaj plua plav thiab av. Qhov thib ob, tsis tu ncua tshuaj xyuas tag nrho cov khoom thiab cov khoom sib txuas ntawm cov khoom siv kom ntseeg tau tias lawv tau ruaj khov. Tsis tas li ntawd, nws yog ib qho tsim nyog yuav tsum tsis tu ncua hloov cov khoom hnyav hnyav, xws li paj log pwm, ultrasonic oscillators, thiab lwm yam. Nyob rau tib lub sijhawm, nws yog ib qho tsim nyog yuav tsum tsis tu ncua lubricate thiab tswj cov khoom siv kom tsis txhob muaj kev sib txhuam thiab hnav. Thaum lub sijhawm tu, yuav tsum tau saib xyuas kom ua raws li kev ua haujlwm thiab kev saib xyuas ntawm cov khoom siv kom tsis txhob muaj kev ua haujlwm tsis raug uas ua rau cov khoom puas tsuaj lossis kev nyab xeeb. Los ntawm kev tshawb fawb thiab kev tswj hwm thiab kev tswj hwm, kev ua haujlwm ruaj khov thiab kev ua haujlwm ntev ntawm ultrasonic bra lace khoom tuaj yeem ua kom ntseeg tau.
Q: Yuav ua li cas ultrasonic bra lace khoom ua tau raws li qhov kev thov rau ntau lawm?
Teb: Nyob rau hauv lub ntsej muag ntawm qhov kev thov rau loj-scale ntau lawm, ultrasonic bra lace khoom yuav tsum tau siv ib tug series ntawm kev ntsuas los xyuas kom meej npaum thiab ruaj khov ntau lawm. Ua ntej, cov qauv khoom siv nrog lub zog ntau dua thiab kev ua haujlwm tuaj yeem raug xaiv los ua kom tau raws li qhov xav tau ntawm ntau lawm. Thib ob, kev ua haujlwm ntau lawm tuaj yeem txhim kho los ntawm kev txhim kho cov txheej txheem ntau lawm thiab txo qis kev ua haujlwm tsis tsim nyog. Tsis tas li ntawd, kev saib xyuas ntau dua yuav tsum tau them nyiaj rau kev saib xyuas thiab tu cov cuab yeej kom ntseeg tau tias nws tseem tuaj yeem tswj xyuas kev ua haujlwm ruaj khov hauv kev ua haujlwm siab. Lub caij no, kev npaj cov phiaj xwm tsim khoom tsim nyog thiab zam kev ua haujlwm tas li ntawm cov cuab yeej siv kuj yog ib qho kev ntsuas tseem ceeb los xyuas kom cov khoom siv lifespan thiab ntau lawm efficiency. Los ntawm cov kev ntsuas no, cov khoom siv ultrasonic bra lace tuaj yeem ua tau raws li qhov xav tau ntawm cov khoom loj thiab ua tiav cov khoom tsim tau zoo thiab ruaj khov.
Yog xav paub ntxiv ntawm Ultrasonic Bra Ua Tshuab, thov koj xav tiv tauj peb!
